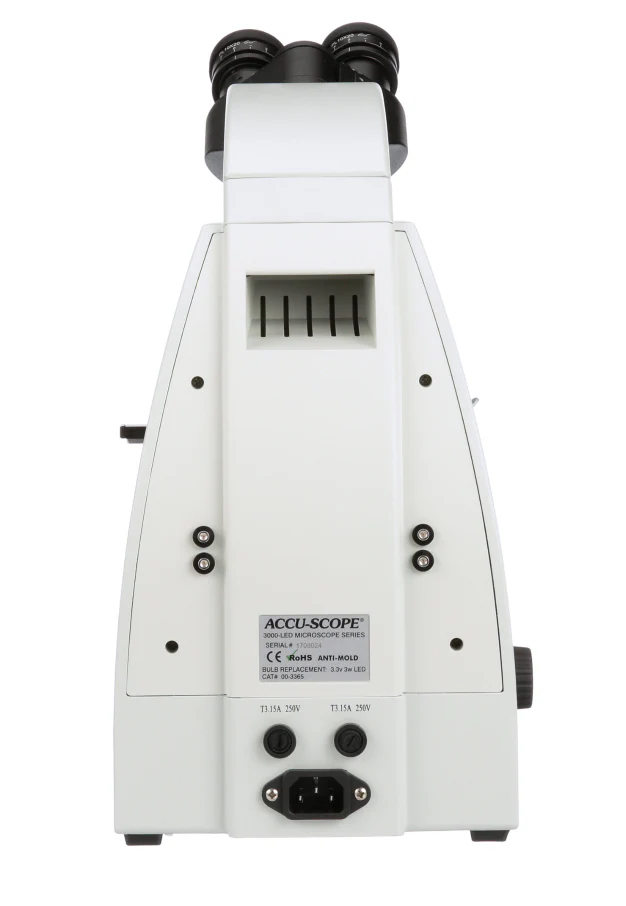

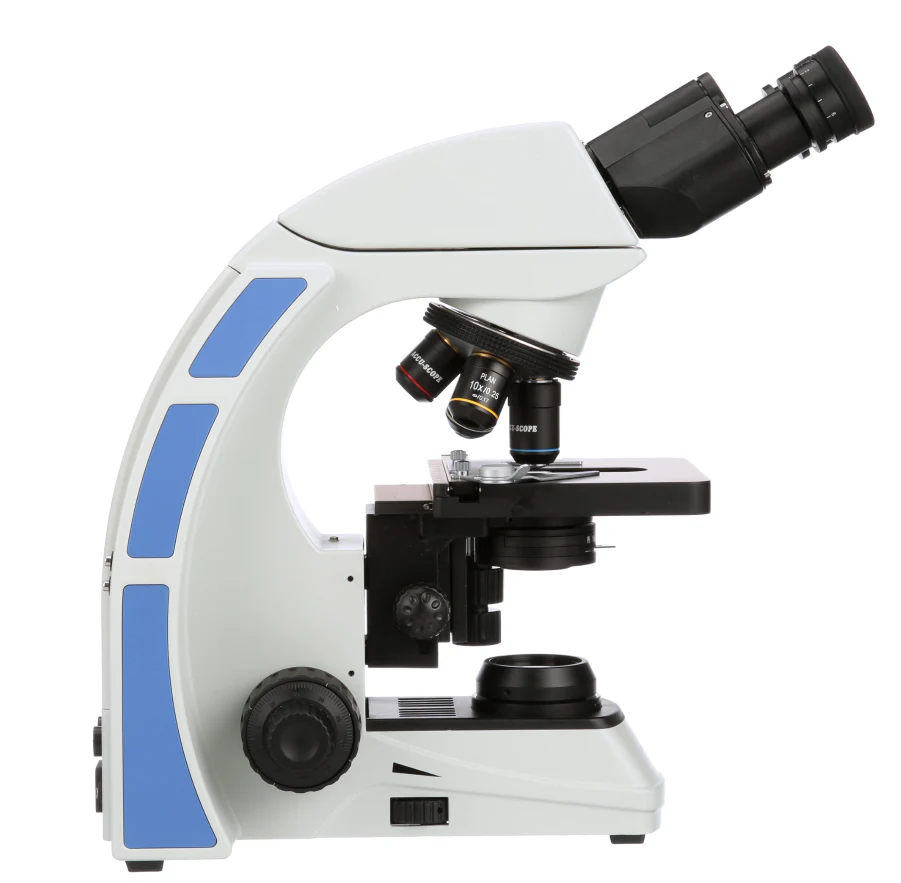

Accu-Scope 3000 Cytology Microscope
The Accu-Scope 3000-LED cytology microscope offers outstanding industry leading optics, illumination, and performance to meet the expectations of professionals and the educational market. With its solid cast metal body & head, metal internal gears and LED illumination system the microscope is built to last. The Plan Achromat 4x, 10x, and 40x objectives give the Nikon & Olympus microscopes a run for their money. At half the price this microscope delivers all of the qualities found in these "higher end" systems. Bringing more value to the table the Accu-Scope 3000-LED is backed by the unmatched 5 year electrical & mechanical warranty.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR* |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
