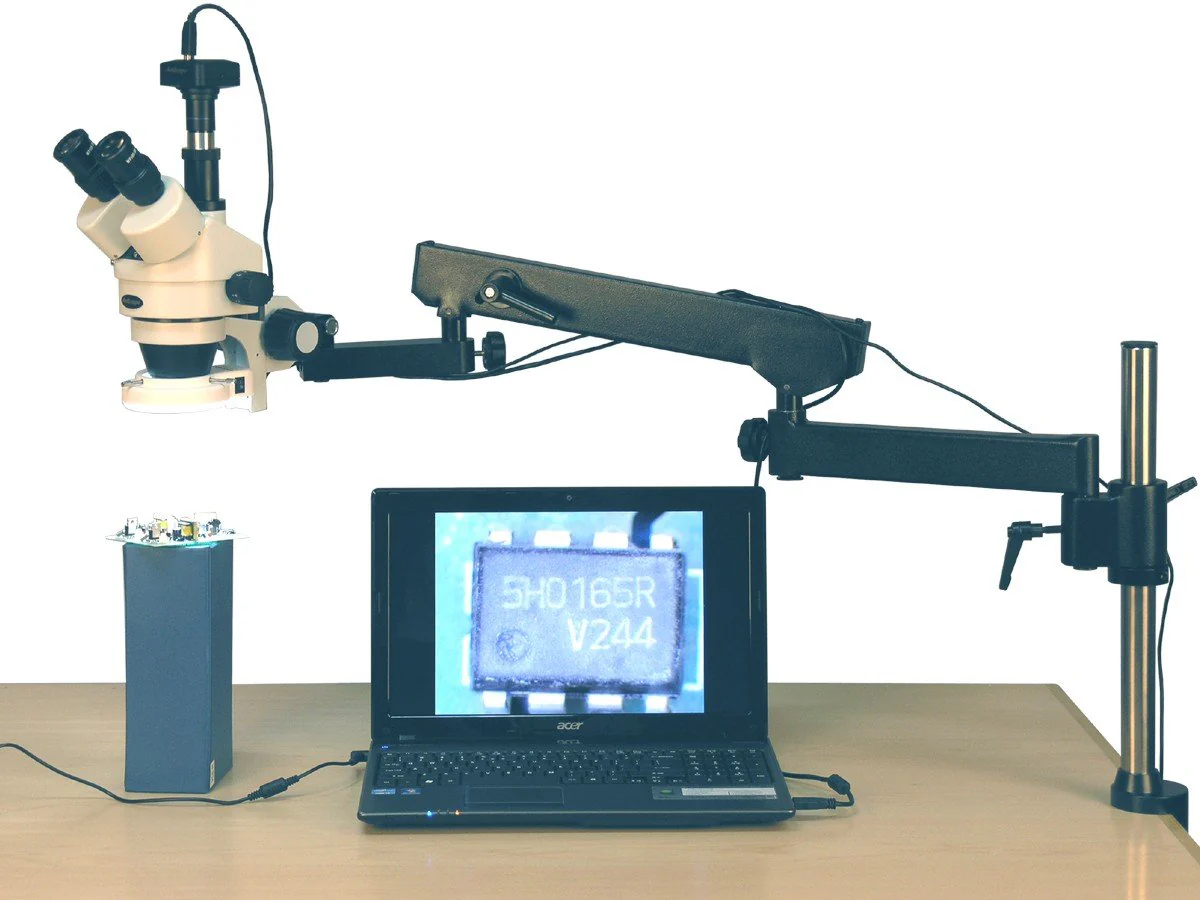

This is a great turnkey package for a simul-focal stereo microscope with an articulating pillar arm and a 5MP digital camera. It includes a 3.5X-225X simul-focal trinocular zoom microscope, an articulating pillar arm, a 144-LED ring light and a 5MP USB digital camera. This microscope features a unique simul-focal optical system with an adjustable trinocular port to enable well-focused clear images on your computer/video screen while simultaneously obtaining sharp, focused images through the eyepieces. Offering sharp and crystal clear images, this unit is a perfect stereo microscopy system for multiple applications. With a vertical pillar and a clamp, the articulating arm provides great flexibility. The LED ring light provides bright, even and cool illumination.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is great for both industrial and biological applications. It is an ideal instrument for manufacturing engineers, researchers, gemologists, lab technicians, and anyone in electronics and semiconductor industries.

Features:

• Unique high quality optical system allows simultaneous observation through both the eyepieces and the trinocular port

- You can have well-focused clear images on your computer or video screen while you get the images in the microscope in focus
- No fiddling needed to switch between the trinocular port and the eyepieces
- No fiddling needed to re-focus the microscope after each "switch"

• 30mm Super Widefield 10X Eyepieces
• Sharp stereo images over a super widefield view
• High resolution with great flatness and contrast

• Versatile heavy-duty articulating arm with a vertical pillar and a clamp

• 45-degree inclined microscope Head

• Accurate alignment reduces eye strain for a More Comfortable Observation
• Both ocular tubes with adjustable diopters
• Adjustable interpupillary distance

Specifications:

• Head: 45-degree inclined, 360-degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint 10X, 25X
• Barlow Lens: 0.5X and 2.0X
• Objective: 0.7-4.5X

• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)


Camera Specifications:

Sensor: Aptina MT9P001Sensor; Type: CMOS Sensor Size: 5.7x4.28mm; Pixel Size: 2.2; Resolution: 5.1MP; Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480; Sensitivity: 0.53 V/lux-sec; Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Simul-Focal Trinocular Zoom Microscope Head
• One Pair of Super Widefield High-eyepoint 10X Eyepieces
• One Pair of Super Widefield High-eyepoint 25X Eyepieces
• One 0.5X Barlow Lens
• One 2.0X Barlow Lens
• One Articulating Arm with a Pillar Clamp
• One Focusing Rack
• One 144-LED Ring Light
• One Ring Light Adapter
• One Pair of Eye-guards

• One 5MP USB2.0 Digital Camera with Reduction Lens
• One 6' (1.8m) USB Cable
• Shipping Weight: 30 lbs
