.Lumenera 3-1 1.4 Megapixel CCD Cooled Digital Camera Series

Product image 1

.Lumenera 3-1 1.4 Megapixel CCD Cooled Digital Camera Series

INFINITY 3-1C — 1.4 Megapixel Color CCD Camera OR INFINITY 3-1M — 1.4 Megapixel Monochrome CCD Camera

Lumenera’s INFINITY3-1 cooled camera is designed for use in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required.

With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications. Uncompressed images in live streaming video and still-image capture are provided across a USB 2.0 digital interface.

The INFINITY3-1 includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images. Both color and monochrome product models are available.

Product Highlights:

  • High-speed USB 2.0 (480Mbits/sec) interface for ease of installation with any computer
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise progressive scan 1.4 megapixel CCD image sensor
  • Crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • 15 fps at full 1392x1040 resolution

    Technical Specs:

    Camera Sensor
    Image Sensor: Sony ICX285 2/3” format, 1.4 megapixel color or monochrome progressive scan CCD sensor
    Effective Pixels: 1392 X 1040, 1.4 million pixels
    Frame Rate: 15 fps at 1392x1040, increased through binning and ROI
    Digital Output: 8 and 12-bit
    Dark Current (e-/s): 0.15 electrons / pixel / s when cooled
    Pixel Size: 6.45 X 6.45 µm
    Full well capacity: >18,000 electrons
    Readout Noise: 8 e- rms
    Cooling type: Hermetically sealed and dry gas filled thermoelectric cooling to 25 degrees Celsius below ambient
    Readout Frequency: 28.6 MHZ
    Camera Controls
    Power Requirement: External 5 V DC - 3 amp
    Power Consumption: ~2.5 W uncooled / ~8.5 W cooled
    Operating Temperature: 0 to +50° C
    Operating Humidity: 5 to 95%, Non-condensing
    Integration Time: 3.5ÎĽs to 20 minutes
    Auto Exposure: Automatic / Manual
    White Balance: Automatic / Manual
    Gain: 1 to 10X programmable
    Interface: USB 2.0 high-speed interface
    Dimensions (L x W x H): 3.85 x 3.5 x 2.446 inch
    Lens Mount: C-Mount lens adapter
    Binning Options: 2x2, 3x3, 4x4

    Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

    INFINITY 3-1C — 1.4 Megapixel Color CCD Camera OR INFINITY 3-1M — 1.4 Megapixel Monochrome CCD Camera

    Lumenera’s INFINITY3-1 cooled camera is designed for use in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required.

    With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications. Uncompressed images in live streaming video and still-image capture are provided across a USB 2.0 digital interface.

    The INFINITY3-1 includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images. Both color and monochrome product models are available.

    Product Highlights:

    • High-speed USB 2.0 (480Mbits/sec) interface for ease of installation with any computer
    • Cooled feature reduces thermal noise during low light fluorescent imaging
    • Low noise progressive scan 1.4 megapixel CCD image sensor
    • Crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
    • 15 fps at full 1392x1040 resolution

      Technical Specs:

      Camera Sensor
      Image Sensor: Sony ICX285 2/3” format, 1.4 megapixel color or monochrome progressive scan CCD sensor
      Effective Pixels: 1392 X 1040, 1.4 million pixels
      Frame Rate: 15 fps at 1392x1040, increased through binning and ROI
      Digital Output: 8 and 12-bit
      Dark Current (e-/s): 0.15 electrons / pixel / s when cooled
      Pixel Size: 6.45 X 6.45 µm
      Full well capacity: >18,000 electrons
      Readout Noise: 8 e- rms
      Cooling type: Hermetically sealed and dry gas filled thermoelectric cooling to 25 degrees Celsius below ambient
      Readout Frequency: 28.6 MHZ
      Camera Controls
      Power Requirement: External 5 V DC - 3 amp
      Power Consumption: ~2.5 W uncooled / ~8.5 W cooled
      Operating Temperature: 0 to +50° C
      Operating Humidity: 5 to 95%, Non-condensing
      Integration Time: 3.5ÎĽs to 20 minutes
      Auto Exposure: Automatic / Manual
      White Balance: Automatic / Manual
      Gain: 1 to 10X programmable
      Interface: USB 2.0 high-speed interface
      Dimensions (L x W x H): 3.85 x 3.5 x 2.446 inch
      Lens Mount: C-Mount lens adapter
      Binning Options: 2x2, 3x3, 4x4

      Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

      Select Title
      From $2,130.00

      Original: $7,100.00

      -70%
      .Lumenera 3-1 1.4 Megapixel CCD Cooled Digital Camera Series—

      $7,100.00

      $2,130.00

      Description

      INFINITY 3-1C — 1.4 Megapixel Color CCD Camera OR INFINITY 3-1M — 1.4 Megapixel Monochrome CCD Camera

      Lumenera’s INFINITY3-1 cooled camera is designed for use in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required.

      With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications. Uncompressed images in live streaming video and still-image capture are provided across a USB 2.0 digital interface.

      The INFINITY3-1 includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images. Both color and monochrome product models are available.

      Product Highlights:

      • High-speed USB 2.0 (480Mbits/sec) interface for ease of installation with any computer
      • Cooled feature reduces thermal noise during low light fluorescent imaging
      • Low noise progressive scan 1.4 megapixel CCD image sensor
      • Crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
      • 15 fps at full 1392x1040 resolution

        Technical Specs:

        Camera Sensor
        Image Sensor: Sony ICX285 2/3” format, 1.4 megapixel color or monochrome progressive scan CCD sensor
        Effective Pixels: 1392 X 1040, 1.4 million pixels
        Frame Rate: 15 fps at 1392x1040, increased through binning and ROI
        Digital Output: 8 and 12-bit
        Dark Current (e-/s): 0.15 electrons / pixel / s when cooled
        Pixel Size: 6.45 X 6.45 µm
        Full well capacity: >18,000 electrons
        Readout Noise: 8 e- rms
        Cooling type: Hermetically sealed and dry gas filled thermoelectric cooling to 25 degrees Celsius below ambient
        Readout Frequency: 28.6 MHZ
        Camera Controls
        Power Requirement: External 5 V DC - 3 amp
        Power Consumption: ~2.5 W uncooled / ~8.5 W cooled
        Operating Temperature: 0 to +50° C
        Operating Humidity: 5 to 95%, Non-condensing
        Integration Time: 3.5ÎĽs to 20 minutes
        Auto Exposure: Automatic / Manual
        White Balance: Automatic / Manual
        Gain: 1 to 10X programmable
        Interface: USB 2.0 high-speed interface
        Dimensions (L x W x H): 3.85 x 3.5 x 2.446 inch
        Lens Mount: C-Mount lens adapter
        Binning Options: 2x2, 3x3, 4x4

        Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

        You may also like

        -70%NEW
        Thumbnail 1

        .Lumenera 2-1R 1.4 Megapixel CCD Digital Camera Series

        $2,425.00

        $727.50

        -70%NEW
        Thumbnail 1Thumbnail 2

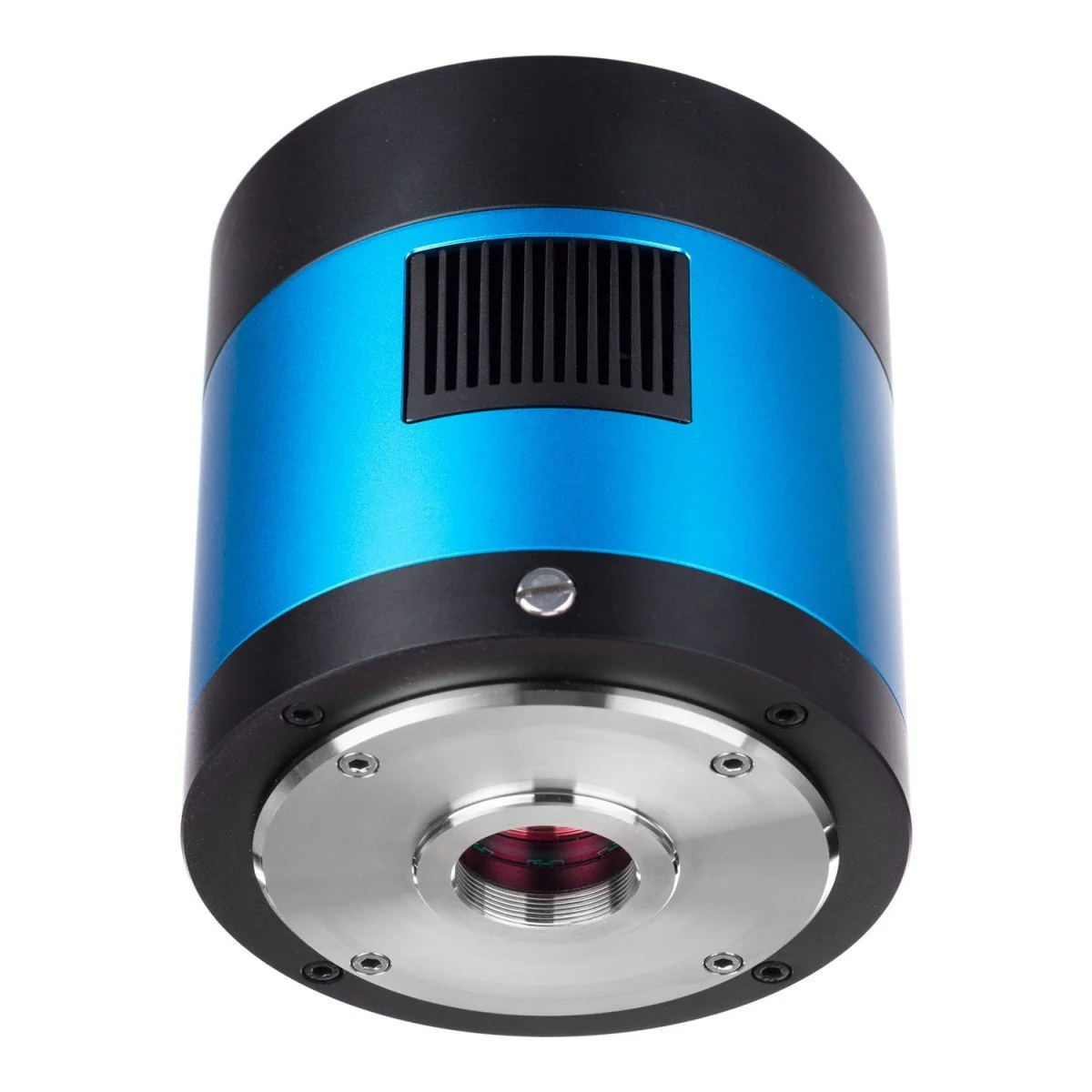

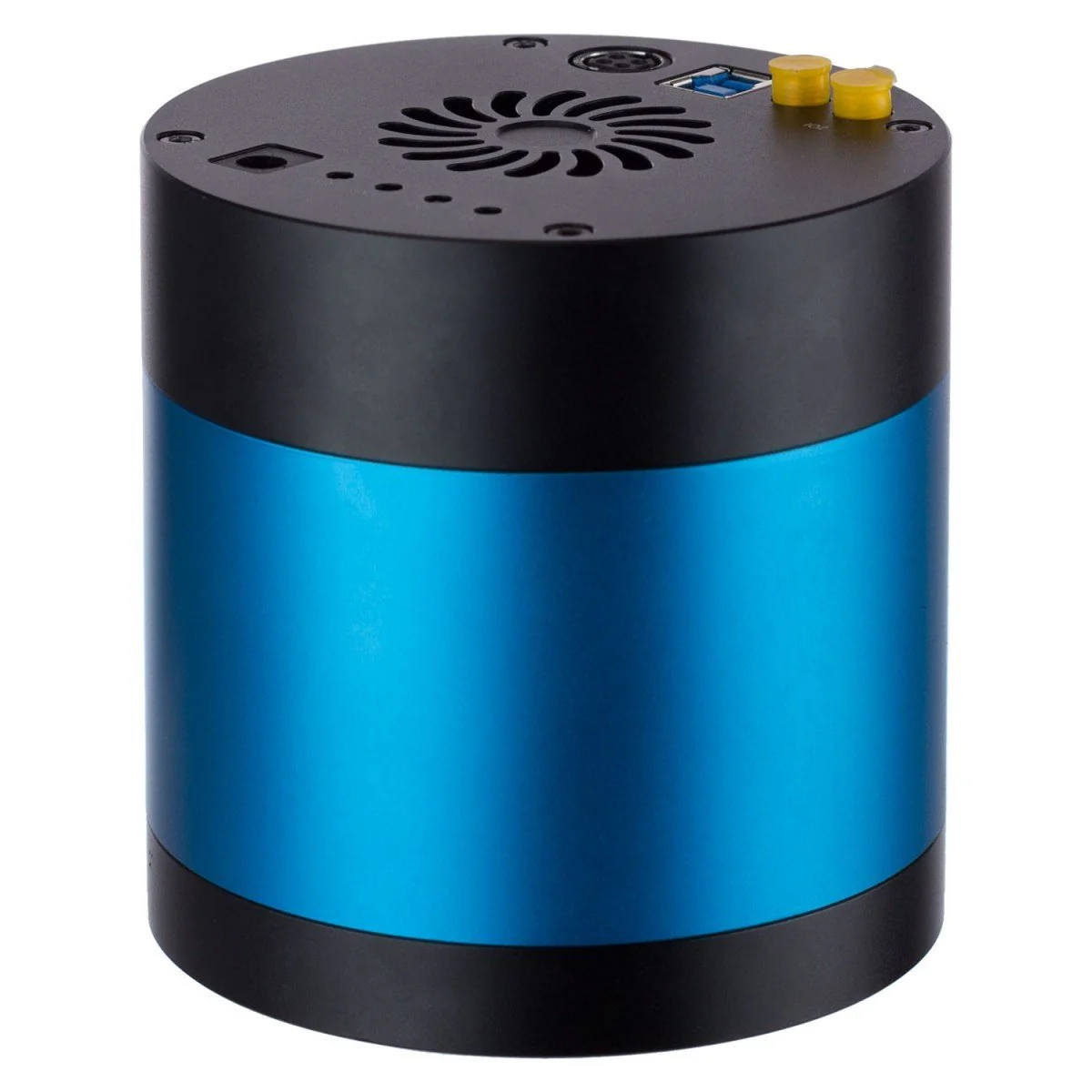

        .AmScope 1.4MP Ultra-sensitive Universal Temperature-Regulated CCD Camera for Low-light Fluorescence
