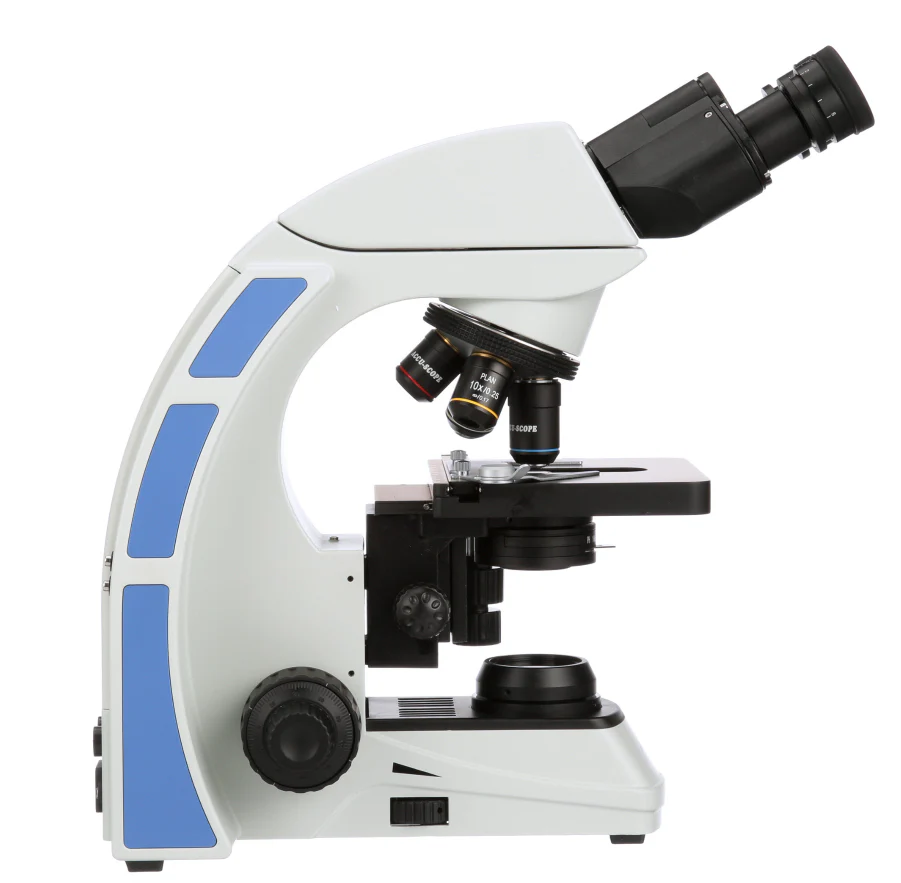

Accu-Scope 3000 Gout Analysis Microscope
The Accu-Scope 3000 microscope is configured for gout analysis. It comes with a rotatable polarizer, red compensator plate, and analyzer. The microscope comes with a binocular or trinocular viewing head. The 10x eyepieces provide a 20mm field of view. It has plan achromat 4x, 10x, 40x, and 100x oil objectives. The LED illumination provides bright and even illumination.
| Specifications | |
|---|---|
| Head: | Binocular viewing head, inclined 30°, rotatable 360° -or- Trinocular |
| Eyepieces: | HWF Plan 10x/20mm focusing eyepieces w/ eyeguards |
| Nosepiece: | Reversed Quadruple |
| Objectives: | Infinity Plan achromat 4x, 10x, 40xR, 100x oil objectives |
| Stage: | Mechanical stage, 140 X 132mm |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm |
| Gout Kit: | Complete Gout kit with polarizer, swing out first order red compensator and analyzer |
| Focusing: | Coarse/Fine Focus |
| Illumination: | LED Variable Illumination |
| Misc: | Dust Cover, 5 Year Mechanical & Electrical Warranty |
Accessories
Brochure
Accu-Scope 3000 / 3001 LED BrochureThe Accu-Scope 3000 microscope is configured for gout analysis. It comes with a rotatable polarizer, red compensator plate, and analyzer. The microscope comes with a binocular or trinocular viewing head. The 10x eyepieces provide a 20mm field of view. It has plan achromat 4x, 10x, 40x, and 100x oil objectives. The LED illumination provides bright and even illumination.
| Specifications | |
|---|---|
| Head: | Binocular viewing head, inclined 30°, rotatable 360° -or- Trinocular |
| Eyepieces: | HWF Plan 10x/20mm focusing eyepieces w/ eyeguards |
| Nosepiece: | Reversed Quadruple |
| Objectives: | Infinity Plan achromat 4x, 10x, 40xR, 100x oil objectives |
| Stage: | Mechanical stage, 140 X 132mm |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm |
| Gout Kit: | Complete Gout kit with polarizer, swing out first order red compensator and analyzer |
| Focusing: | Coarse/Fine Focus |
| Illumination: | LED Variable Illumination |
| Misc: | Dust Cover, 5 Year Mechanical & Electrical Warranty |
Accessories
Brochure
Original: $2,581.00
-70%$2,581.00
$774.30Description
The Accu-Scope 3000 microscope is configured for gout analysis. It comes with a rotatable polarizer, red compensator plate, and analyzer. The microscope comes with a binocular or trinocular viewing head. The 10x eyepieces provide a 20mm field of view. It has plan achromat 4x, 10x, 40x, and 100x oil objectives. The LED illumination provides bright and even illumination.
| Specifications | |
|---|---|
| Head: | Binocular viewing head, inclined 30°, rotatable 360° -or- Trinocular |
| Eyepieces: | HWF Plan 10x/20mm focusing eyepieces w/ eyeguards |
| Nosepiece: | Reversed Quadruple |
| Objectives: | Infinity Plan achromat 4x, 10x, 40xR, 100x oil objectives |
| Stage: | Mechanical stage, 140 X 132mm |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm |
| Gout Kit: | Complete Gout kit with polarizer, swing out first order red compensator and analyzer |
| Focusing: | Coarse/Fine Focus |
| Illumination: | LED Variable Illumination |
| Misc: | Dust Cover, 5 Year Mechanical & Electrical Warranty |
