Accu-Scope EXC-100 Microscope Series
The Accu-Scope EXC-100 microscope is designed for educational use from middle / high school, to light college / university level. You can choose from a binocular, or trinocular viewing head. Both options will come with a pair of 10x eyepieces with an 18mm field of view, and a pointer in the right eyepiece. The four position nosepiece has a rear facing design to prevent students from tampering with the front of the objectives. This microscope comes with DIN Achromat 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage allows you to effortless move your slide. The abbe condenser has a 1.25 N.A. and can accept filters. For ease of use this microscope comes with variable and rechargeable LED illumination. The microscope is engineered to be solid an robust for student use while incorporating student friendly features like:
- 360 Degree Rotating Head
- Eyepieces That Lock In To Avoid Tampering
- Reversed Style Nosepiece
- Intergraded Cord Wrap
| Specifications: | |
|---|---|
| Head: | EXC-100: Binocular, inclined 30°, rotatable 360°, adjustable interpupillary distance 50~75mm, right diopter adjustment; EXC-103: Trinocular, inclined 30°, rotatable 360°, fixed 50/50 light split (eyepieces/photo port), adjustable interpupillary distance 50~75mm, right diopter adjustment |
| Eyepieces: | WF10x eyepiece, 18mm field of view, pointer in one eyepiece |
| Nosepiece: | Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment |
| Objectives: | DIN Achromat 4x, 10x, 40xR* and 100xR* oil objectives (* spring loaded) |
| Stage: | Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder |
| Condenser: | N.A. 1.25 condenser, iris diaphragm, filter holder |

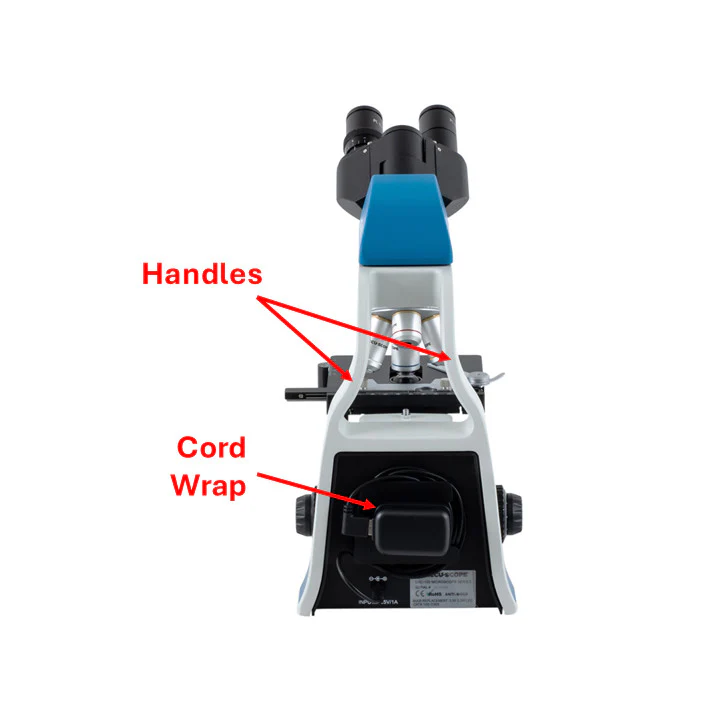

| Stand: | Cast aluminum alloy with built-in carry handle and power cord wrap |
| Focusing: | Coaxial coarse and fine focus, focus tension adjustment; focus travel stop |
| Illumination: | Variable and rechargeable† 0.2W LED illuminator (†requires three AA 1300mAh 1.2V NiMH batteries, included) |
| Accessories: | Instruction Manual |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Brochure
Accu-Scope EXC-100 BrochureThe Accu-Scope EXC-100 microscope is designed for educational use from middle / high school, to light college / university level. You can choose from a binocular, or trinocular viewing head. Both options will come with a pair of 10x eyepieces with an 18mm field of view, and a pointer in the right eyepiece. The four position nosepiece has a rear facing design to prevent students from tampering with the front of the objectives. This microscope comes with DIN Achromat 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage allows you to effortless move your slide. The abbe condenser has a 1.25 N.A. and can accept filters. For ease of use this microscope comes with variable and rechargeable LED illumination. The microscope is engineered to be solid an robust for student use while incorporating student friendly features like:
- 360 Degree Rotating Head
- Eyepieces That Lock In To Avoid Tampering
- Reversed Style Nosepiece
- Intergraded Cord Wrap
| Specifications: | |
|---|---|
| Head: | EXC-100: Binocular, inclined 30°, rotatable 360°, adjustable interpupillary distance 50~75mm, right diopter adjustment; EXC-103: Trinocular, inclined 30°, rotatable 360°, fixed 50/50 light split (eyepieces/photo port), adjustable interpupillary distance 50~75mm, right diopter adjustment |
| Eyepieces: | WF10x eyepiece, 18mm field of view, pointer in one eyepiece |
| Nosepiece: | Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment |
| Objectives: | DIN Achromat 4x, 10x, 40xR* and 100xR* oil objectives (* spring loaded) |
| Stage: | Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder |
| Condenser: | N.A. 1.25 condenser, iris diaphragm, filter holder |
| Stand: | Cast aluminum alloy with built-in carry handle and power cord wrap |
| Focusing: | Coaxial coarse and fine focus, focus tension adjustment; focus travel stop |
| Illumination: | Variable and rechargeable† 0.2W LED illuminator (†requires three AA 1300mAh 1.2V NiMH batteries, included) |
| Accessories: | Instruction Manual |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Brochure
Original: $644.00
-70%$644.00
$193.20Description
The Accu-Scope EXC-100 microscope is designed for educational use from middle / high school, to light college / university level. You can choose from a binocular, or trinocular viewing head. Both options will come with a pair of 10x eyepieces with an 18mm field of view, and a pointer in the right eyepiece. The four position nosepiece has a rear facing design to prevent students from tampering with the front of the objectives. This microscope comes with DIN Achromat 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage allows you to effortless move your slide. The abbe condenser has a 1.25 N.A. and can accept filters. For ease of use this microscope comes with variable and rechargeable LED illumination. The microscope is engineered to be solid an robust for student use while incorporating student friendly features like:
- 360 Degree Rotating Head
- Eyepieces That Lock In To Avoid Tampering
- Reversed Style Nosepiece
- Intergraded Cord Wrap
| Specifications: | |
|---|---|
| Head: | EXC-100: Binocular, inclined 30°, rotatable 360°, adjustable interpupillary distance 50~75mm, right diopter adjustment; EXC-103: Trinocular, inclined 30°, rotatable 360°, fixed 50/50 light split (eyepieces/photo port), adjustable interpupillary distance 50~75mm, right diopter adjustment |
| Eyepieces: | WF10x eyepiece, 18mm field of view, pointer in one eyepiece |
| Nosepiece: | Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment |
| Objectives: | DIN Achromat 4x, 10x, 40xR* and 100xR* oil objectives (* spring loaded) |
| Stage: | Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder |
| Condenser: | N.A. 1.25 condenser, iris diaphragm, filter holder |
| Stand: | Cast aluminum alloy with built-in carry handle and power cord wrap |
| Focusing: | Coaxial coarse and fine focus, focus tension adjustment; focus travel stop |
| Illumination: | Variable and rechargeable† 0.2W LED illuminator (†requires three AA 1300mAh 1.2V NiMH batteries, included) |
| Accessories: | Instruction Manual |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
