Accu-Scope EXC-120 LED Microscope

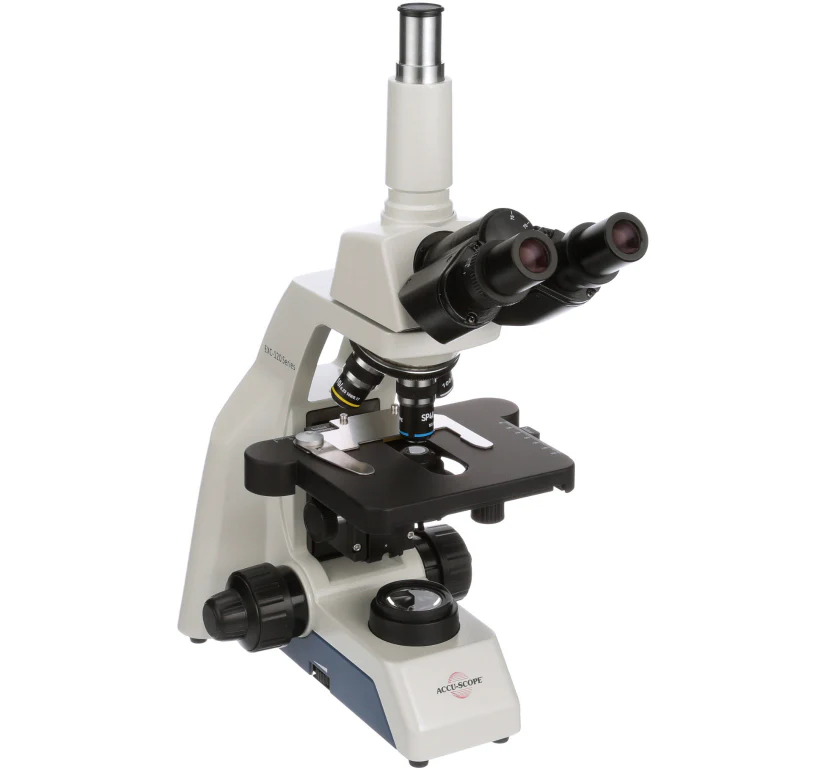

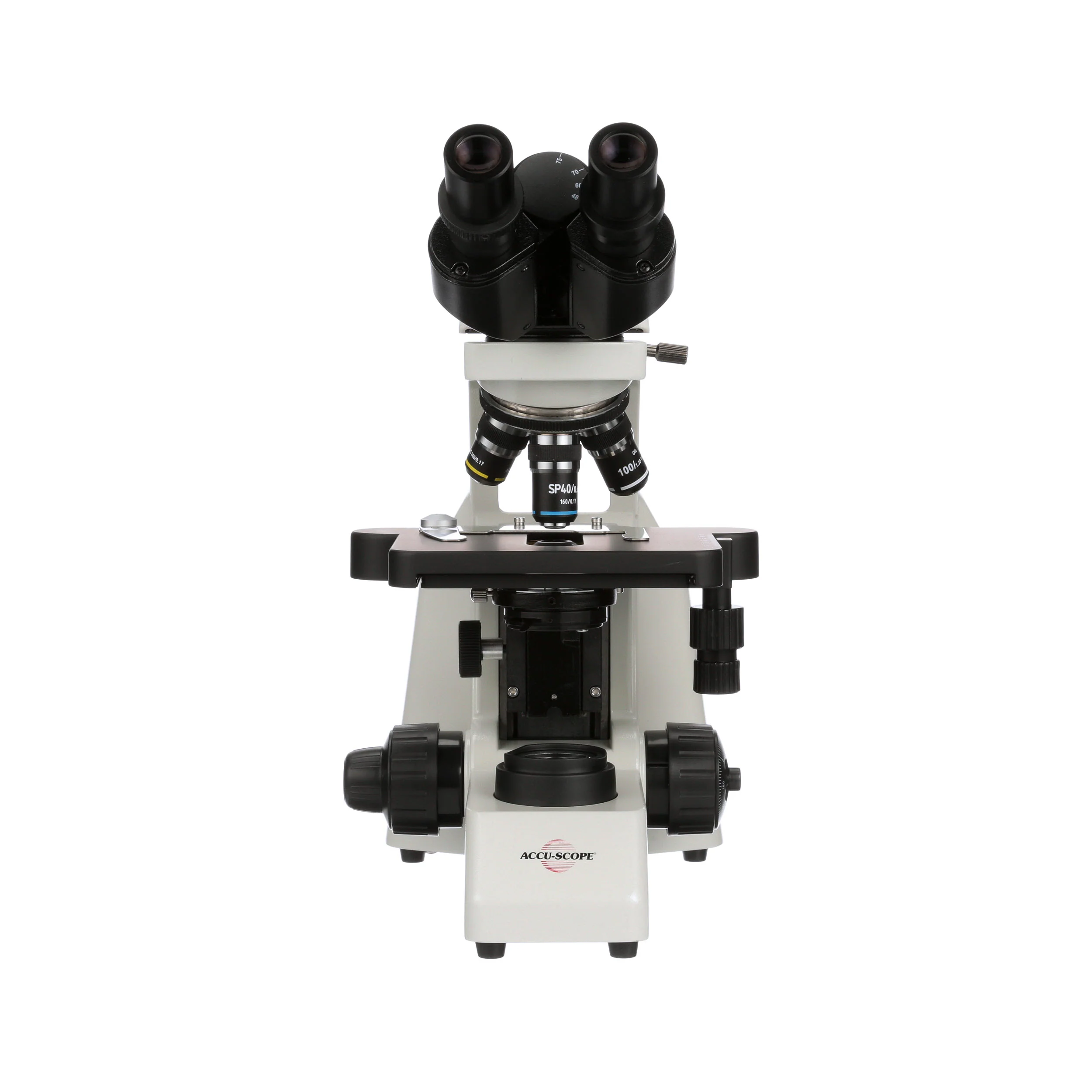

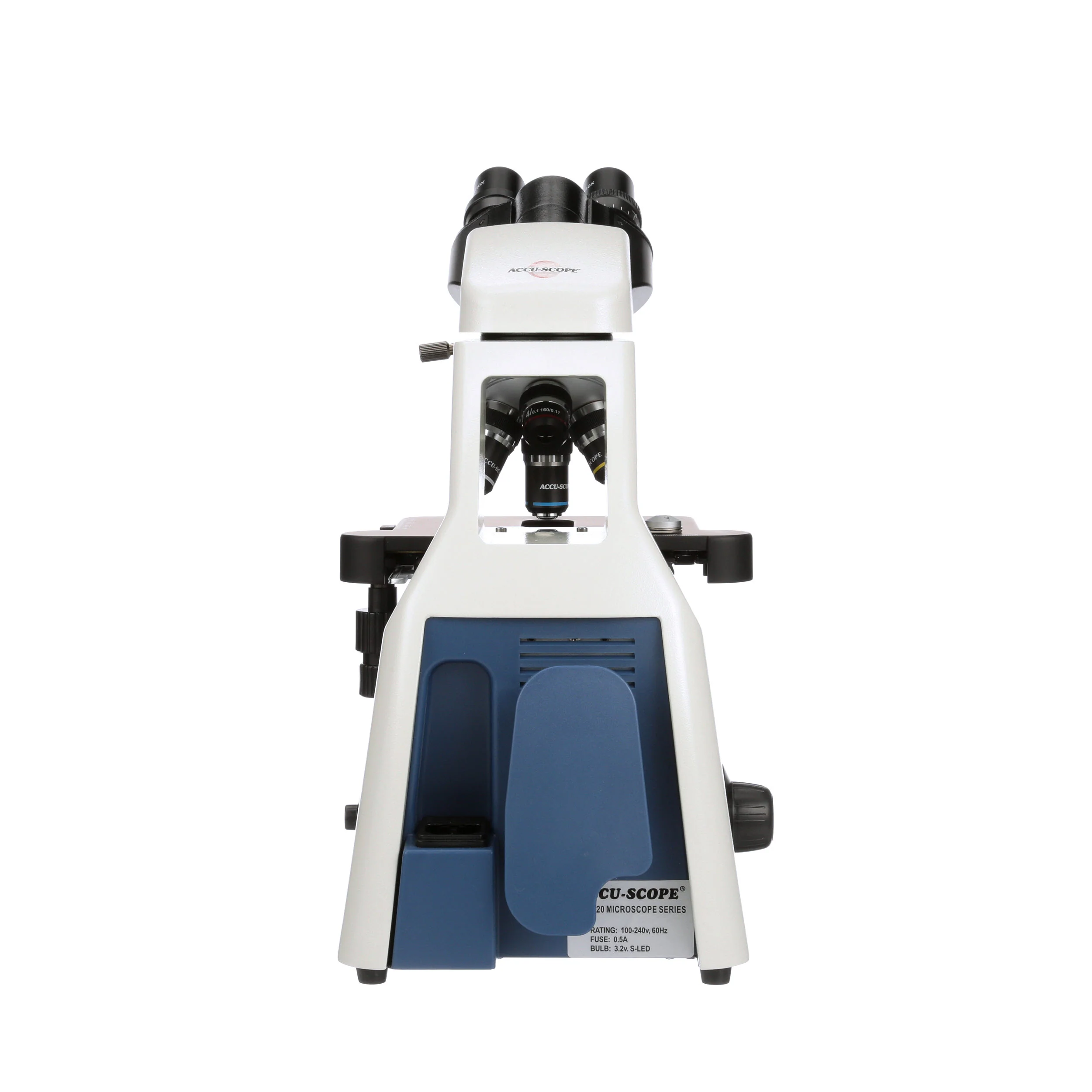

The Accu-Scope EXC-120 microscope is ideal for education and veterinary applications. It's solid construction and user friendly features make this microscope best in it's class. The microscope comes with your choice of a binocular or trinocular viewing head. The 10x eyepieces lock into position, and provide an 18.5mm field of view. A four position nosepiece can come with Semi-Plan or Plan Achromat objectives. The XY mechanical stage is rackless, so no bar protrudes out the side of the microscope when you move the stage. The 1.25 N.A. condenser focuses fully up and down so you can adjust for contrast and optimal resolution. The microscope features a variable LED light source which provides over 20,000 hours of use.
- Eyepieces Lock In To Avoid Tampering
- Integrated Carry Handle For Safe Transportation
- Rackless XY Mechanical Stage
- Integrated Cord Wrap
- Solid Construction - All Metal Gears
| Specifications: | |
|---|---|
| Head: | Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment |
| Eyepieces: | WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles |
| Nosepiece: | Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration |
| Objectives: |
DIN Semi Plan Archomat 4x,10x, 40x DIN Semi Plan Archomat 4x,10x, 40x, 100x Oil Or DIN Plan Achromat 4x, 10x, 40x, 100x Oil |
| Stage: | Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm |
| Condenser: | N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder |
| Stand: | Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger |
| Focusing: | Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears |
| Illumination: | Variable LED illumination; bulb life rated for 20,000 hours |
| Accessories: | Dust cover, immersion oil and instruction manual included |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Achromat / Semi-Plan Objectives
Brochure
Accu-Scope EXC-120 BrochureThe Accu-Scope EXC-120 microscope is ideal for education and veterinary applications. It's solid construction and user friendly features make this microscope best in it's class. The microscope comes with your choice of a binocular or trinocular viewing head. The 10x eyepieces lock into position, and provide an 18.5mm field of view. A four position nosepiece can come with Semi-Plan or Plan Achromat objectives. The XY mechanical stage is rackless, so no bar protrudes out the side of the microscope when you move the stage. The 1.25 N.A. condenser focuses fully up and down so you can adjust for contrast and optimal resolution. The microscope features a variable LED light source which provides over 20,000 hours of use.
- Eyepieces Lock In To Avoid Tampering
- Integrated Carry Handle For Safe Transportation
- Rackless XY Mechanical Stage
- Integrated Cord Wrap
- Solid Construction - All Metal Gears
| Specifications: | |
|---|---|
| Head: | Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment |
| Eyepieces: | WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles |
| Nosepiece: | Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration |
| Objectives: |
DIN Semi Plan Archomat 4x,10x, 40x DIN Semi Plan Archomat 4x,10x, 40x, 100x Oil Or DIN Plan Achromat 4x, 10x, 40x, 100x Oil |
| Stage: | Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm |
| Condenser: | N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder |
| Stand: | Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger |
| Focusing: | Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears |
| Illumination: | Variable LED illumination; bulb life rated for 20,000 hours |
| Accessories: | Dust cover, immersion oil and instruction manual included |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Achromat / Semi-Plan Objectives
Brochure
Description
The Accu-Scope EXC-120 microscope is ideal for education and veterinary applications. It's solid construction and user friendly features make this microscope best in it's class. The microscope comes with your choice of a binocular or trinocular viewing head. The 10x eyepieces lock into position, and provide an 18.5mm field of view. A four position nosepiece can come with Semi-Plan or Plan Achromat objectives. The XY mechanical stage is rackless, so no bar protrudes out the side of the microscope when you move the stage. The 1.25 N.A. condenser focuses fully up and down so you can adjust for contrast and optimal resolution. The microscope features a variable LED light source which provides over 20,000 hours of use.
- Eyepieces Lock In To Avoid Tampering
- Integrated Carry Handle For Safe Transportation
- Rackless XY Mechanical Stage
- Integrated Cord Wrap
- Solid Construction - All Metal Gears
| Specifications: | |
|---|---|
| Head: | Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment |
| Eyepieces: | WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles |
| Nosepiece: | Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration |
| Objectives: |
DIN Semi Plan Archomat 4x,10x, 40x DIN Semi Plan Archomat 4x,10x, 40x, 100x Oil Or DIN Plan Achromat 4x, 10x, 40x, 100x Oil |
| Stage: | Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm |
| Condenser: | N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder |
| Stand: | Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger |
| Focusing: | Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears |
| Illumination: | Variable LED illumination; bulb life rated for 20,000 hours |
| Accessories: | Dust cover, immersion oil and instruction manual included |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Achromat / Semi-Plan Objectives
