This is a trinocular 2X-225X extreme widefield zoom stereo microscope with an high-speed 18MP USB camera, providing super crystal clear sharp images. It comes with a trinocular zoom microscope with two pairs of 30mm extreme widefield high-eyepoint eyepieces, a versatile 3D double-arm boom stand, and a 150W fiber optic halogen ring illuminator. The digital camera captures still images and video, and allows you to view a live stream on your PC. This high-speed camera has a maximum frame-rate of 54fps at low resolution. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. The 3D boom stand allows you to rotate the microscope head around three different axes; that is, you can point the microscope head in any direction you wish. This microscope offers super high resolution, extreme widefield of view, super wide magnifying zoom range (112:1), and extremely large working distance (14", 356mm). It is an ideal instrument for engravers, gemologists, collectors and anyone in semiconductor and/or electronic industry.

Features :

• 2X-225X Extreme Widefield Stereo Zoom Microscope with High Resolution Image System!
• 14" (350mm) Extremely Large Working Distance!
• (112:1) Extremely Wide Zoom Ratio!
• 150W Fiber Optic Halogen Ring Illumination
• Super High Resolution with Great Flatness and Contrast
• Erect Stereo Sharp Images with Extreme Widefield of View
• Accurate Alignment Ensures Hours of Fatigue-Free Viewing
• Crystal Clear Original True Color Images
• 45° Inclined Trinocular Head with Extreme Widefield High-Eyepoint Eyepieces
• 30mm WF10X/22 Extreme Widefield Eyepieces (see the difference in the above picture)
• Both Ocular-Tubes with Adjustable Diopter
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• 3D Double-Arm Boom Stand Allows Pointing Microscope Head in Any Direction You Wish, Covering Large Working Area
• Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Cast Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Head: 45° inclined 360° swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/22 and WF25X/9
• Objective: 0.67-4.5X
• Barlow Lenses: 0.3X and 2X
• Zoom Range: 112:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 14" (350mm)
• Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
• Accessories: eye-guards
• Weight: 75 lbs (34 kg)
• Packages: 2 (53 lbs and 22 lbs)

Camera Specifications:

Sensor: Aptina AR1820 (color)Sensor Type: CMOSSensor Size: 6.14x4.61mmPixel Size: 1.25Resolution: 18MPMax Frame Rate: 54.4fps @ 1228x922, 34.3fps @ 2456x1842, 13.1fps @ 4912x3684Sensitivity: 0.62 V/lux-secConnectivity: USB 3.0Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of WF10X Eyepieces
• One Pair of WF25X Eyepieces
• Two Barlow Lenses: 0.3X & 2X
• One 3D Double-Arm Boom Stand with Focusing Rack
• One Pair of Eye-Guards

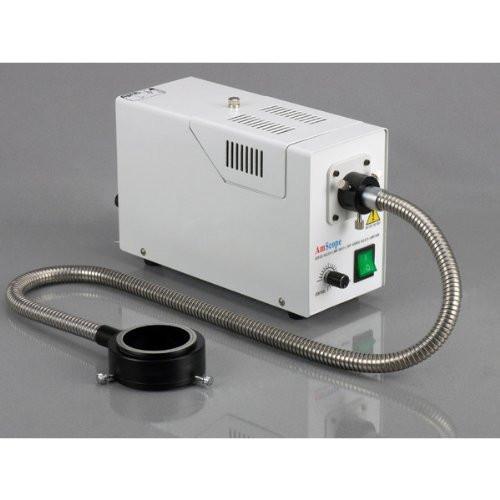

• One 150W Halogen Light Source
• One Fiber Optic Ring Light with Mounting Adapter
• User's Manual Download

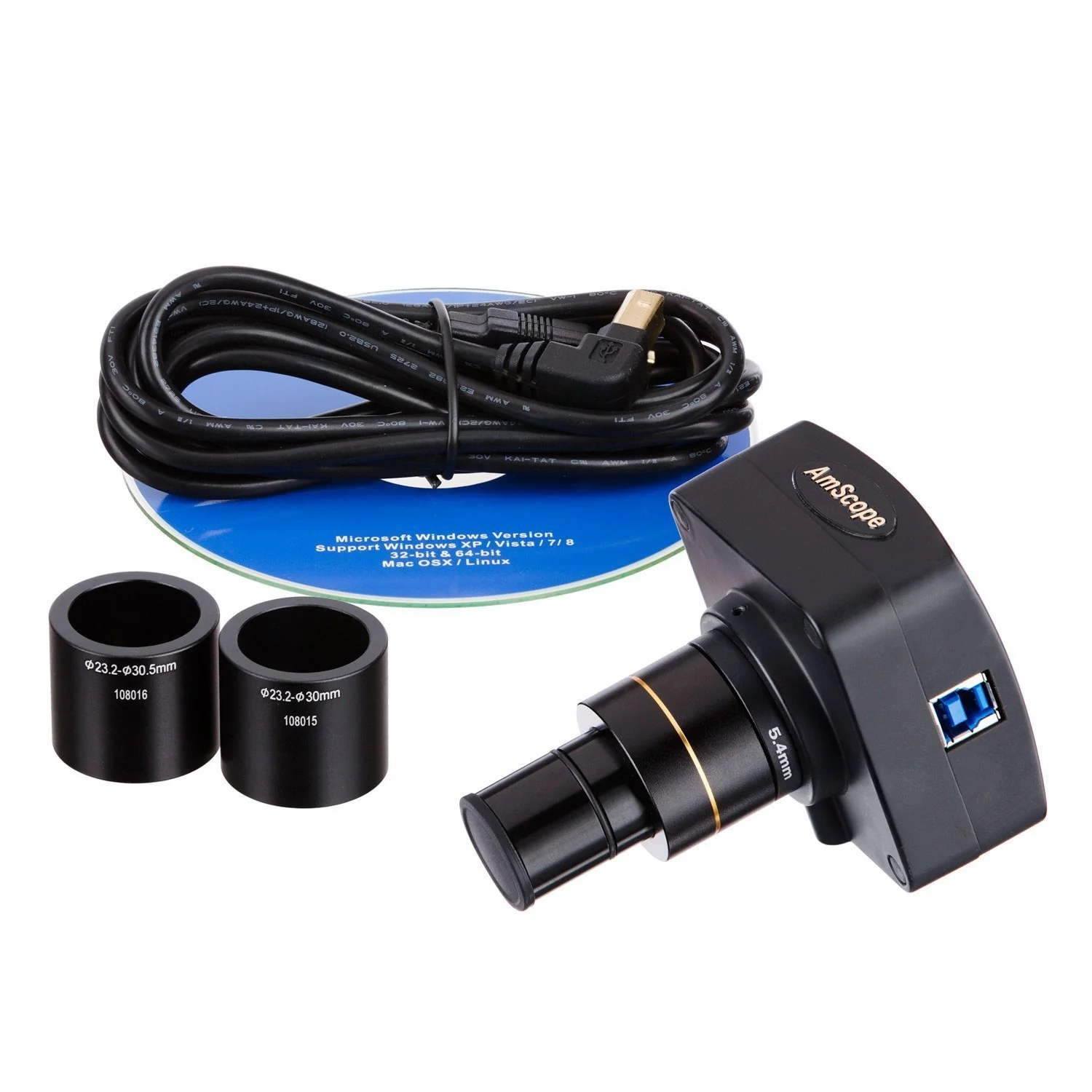

• One 18MP High-speed USB3.0 Color Digital Image System with Reduction Lens
• One CD with Software, Driver and Step-by-Step User's Instructions for the Camera
• Two Camera Adapters
