Olympus SZ-6145TR Digital HD Stereo Microscope 0.67x - 4.5x
The Olympus SZ61 Digital HD stereo microscope offers a zoom range 6.7x - 45x with the included 10x eyepieces. This digital package includes a 5.0 M.P. HD multi-output digital microscope camera. The 11.6" retina display screen allows you to see a live image directly above your eyepieces. The camera comes with a mouse which plugs into the camera and offers on board controls of the camera. Without the use of a computer you can capture images/videos to the removable SD card, do a side by side comparison of a live image vs captured image, and more! Additionally you can output the camera VIA HDMI to a larger monitor or USB to your computer where you can take advantage of the full software offering annotations, measurements, stacking, extended depth of focus, etc.

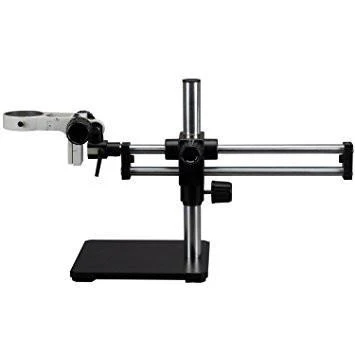

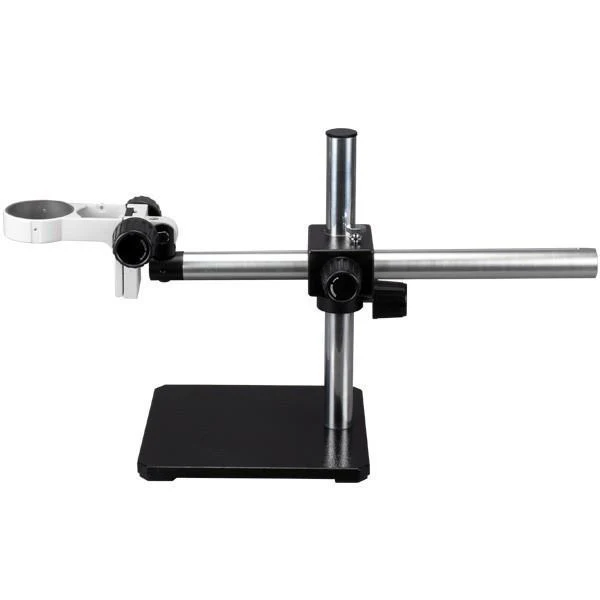

***Microscope not pictured on all stands. Certain selections will show the stand only, you will receive the scope, eyepieces, and selected stand.***
Ā
| Olympus SZ61TR Digital HD Microscope Specifications: | |
|---|---|
| Head: | Trinocular 45 degree |
| Zoom Range: | 0.67x - 4.5x |
| Eyepieces: | 10x/22mm FOV |
| Overall Mag: | 6.7x - 45x |
| Working Distance: | 110mm |
| Stand: |
Plain Stand LED Transmitted & Reflected Boom Stand Ball Bearing Boom Stand (Other Options Available Please Contact Us) |
| Warranty: | 5 Year Mechanical |
|
Camera Specifications: |
|
|---|---|
| Screen: |
Mountable 11.6" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - CapturedĀ 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
