This high quality microscope is designed for professional jewelers and gemologists. It includes a 3.5X-90X super widefield zoom stereo microscope head, 3D jewelry/gem clamp (tweezers), a rotatable round stage with darkfield iris condenser, a professional GEM stand and, a high resolution 3MP digital camera. It offers 8" (200mm) working distance, 2-1/2" (65mm) super wide field of view and 26:1 large zoom magnification range. The microscope is illuminated with a 30W darkfield halogen light built in to the base and a 7W gooseneck rectangular fluorescent incident light box, providing rich spectrum, high-temperature color and close-to-daylight illumination. The incident light box shines light down onto objects, used to observe the surface details and fine structures of jewels or gemstones. The transmitted light through the darkfield condenser is designed for the examination of the inside quality of diamonds. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscope is manufactured under the strict guidelines established under ISO 9001:2000 Standards.

Features :

A high quality professional 3.5X-90X trinocular jewelry/gem microscope with 3MP digital camera and rotatable darkfield stage

A right microscope for distinguishing genuine & imitation gems and judging production origin

Comfortable Ergonomic design

High resolution sharp images with both bright and dark field illumination

Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations

Adjustable stand for easy and comfortable observation

Possible to measure gem angles

Contemporary high-power halogen system providing rich spectrum, high-temperature color, and close-to-daylight illumination

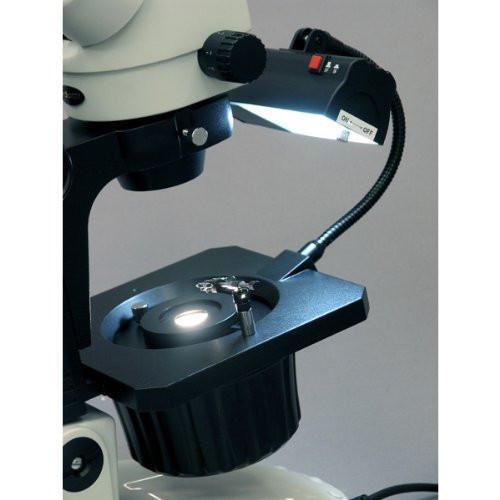

Flexible gooseneck-supported rectangular incident (top) fluorescent lamp

Bright halogen bottom light with dimmer for best darkfield illumination

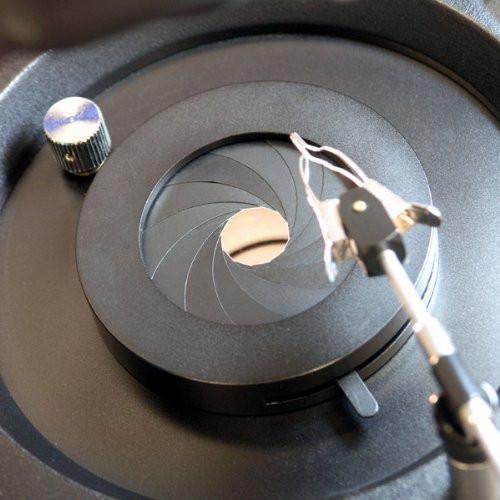

Built-in darkfield condenser with iris

3D flexible gem clamp

45 degree inclined 360 degree rotatable trinocular head

Trinocular port for adding photo or video capability

Large zoom magnification range

High resolution optics with great flatness and contrast

Sharp stereo erect images over a wide field view

Crystal clear original true color images

Eye tube with adjustable diopter

Accurate alignment ensuring a fatigue-free viewing

Full optical glass elements

Precise ground glass lenses

All metal mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty



Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm widefield WF10X/20

Barlow Lens: 0.5X and 2.0X

Objective: 0.35-9.0X

Zoom Range: 26:1

Working Distance: 8" (200mm)

Field of View: 2-1/2" (65mm) in diameter

Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)

Stand: gemology stand, inclinable up to 38 degrees

Iris Diaphragm: 2 - 41mm

Focal Range: 4-3/8" (110mm)

Stereo Angle: 12.4 degree

Diopter Adjustment: +/-5dp

Top Illumination: 7W fluorescent

Bottom Illumination: 30W halogen

Power Supply: AC 110V 60Hz

Accessories: dust cover, eye-guards and clips

Shipping Weight: 50 lbs



Camera Specifications:

Sensor: Aptina MT9T001

Sensor Type: CMOS

Sensor Size: 6.55x4.92mm

Pixel Size: 3.2

Resolution: 3.1MP

Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510

Sensitivity: 1.0V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux



Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port



Packing List:

One Trinocular Stereo Zoom Microscope Head

One Pair of Super Widefield WH10X/20 Eyepieces

One 0.5X Super Widefield Barlow Lens

One 2.0X Super Widefield Barlow Lens

One gemology microscope stand with Darkfield Illumination System

One Rectangular Fluorescent Lamp

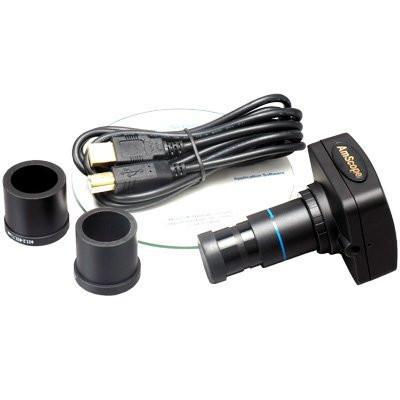

One 3MP USB2.0 Color Digital Camera with Reduction Lens

Two Mounting Adapters

One USB Cable

One CD with Software, Driver and User's Instructions

One 3D Gem Clamp (tweezers)

One Dust Cover

User's Manual

AmScope GM400TZ-3M Microscope
