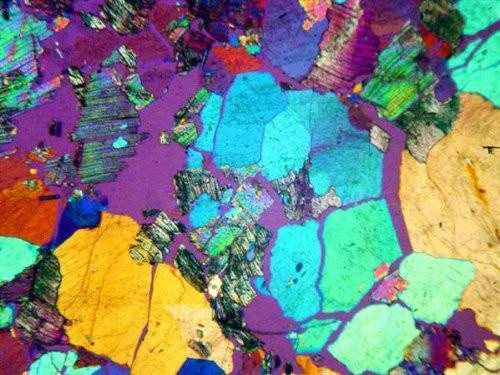

The ME520T is a highly versatile microscope for materials inspection using transmitted and reflected light. Primarily designed as an upright metallurgical microscope, the high-power 100W epi-illumination system can be used for brightfield, darkfield, and basic polarized-light. Wafer inspection and metallographic applications will greatly benefit from the illumination modes. The addition of transmitted lighting provides even more flexibility for biological specimens, or backlighting hollow or porous materials. This instrument will be indispensable in any biology, medical, or materials lab.

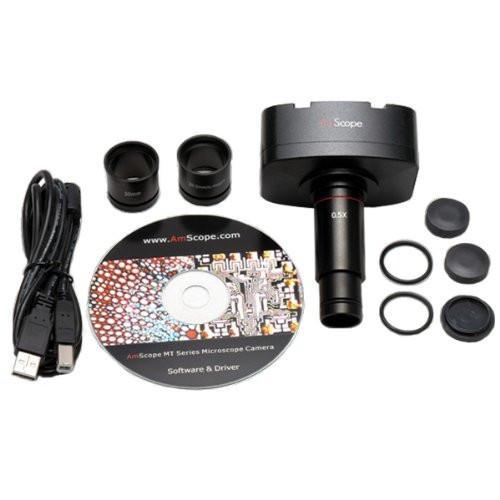

Monitor and capture photos and videos with the included 3.0MP USB3.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. The USB 3.0 connection provides greater bandwidth for faster frame-rates. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications

Optical System	Infinite-conjugate
Reference Focal Length	200mm
Head	Trinocular, 30° incline, 360° rotatable
Interpupillary Adjustment	Siedentopf compensation-free gemel, 48-75mm
Ocular Diameter	30mm
Ocular Diopters	left ocular
Eyepieces	10X eyepiece with reticle 10X, 20X
Photo Port	height-adjustable YX series, 23mm tube mount
Objective Lenses	Infinity-corrected
Objective Parfocal Distance	45mm
Objective Mounting Thread	3 x RMS 20.32mm, 2 x M25
Objective Turret	Reverse quintuple, ball-bearing movement
Focusing System	Coaxial coarse and fine focus, tension control
Focus Range	Travel 24mm Coarse Stroke 37.7mm per rotation Fine Stroke 0.1mm per rotation
Stage Design	Three-layer mechanical stage with caliper
Stage Dimensions	186mm x 138mm
X-Y Translation Range	74mm x 50mm
Transmitted Illumination	100W halogen, continuous-adjustment, rear-mount housing with aspherical collector
Episcopic Illumination	100W halogen, continuous-adjustment, rear-mount housing with aspherical collector
Condenser	NA0.9/0.25 achromatic swing condenser with iris diaphragm
Sub-stage Condenser-holder	rack and pinion
Power	100-240VAC 50/60Hz wide-band

Objective Lenses

This microscope includes seven objective lenses for metallurgical and biological applications. Two lenses are designated as BD, which can be used for reflected-light darkfield.

Brightfield Metallurgical Objective Lenses
Magnification	Corrections	NA	Working Distance	Cover-glass Thickness	Mount
5X	Plan-achromatic	0.12	15.5mm	—	RMS
50X	Plan-achromatic	0.75	0.32mm	0	RMS
100X	Plan-achromatic	0.80	2mm	0	RMS
Brightfield/Darkfield Metallurgical Objective Lenses
Magnification	Corrections	NA	Working Distance	Cover-glass Thickness	Mount
10X	Plan-achromatic	0.25	10mm	0	M25
20X	Plan-achromatic	0.40	4.3mm	0	M25
Transmitted-light Objective Lenses
Magnification	Corrections	NA	Working Distance	Cover-glass Thickness	Mount
40X	Plan-achromatic	0.65	0.54mm	0.17mm	RMS
100X	Plan-achromatic	1.25	0.13mm	0.17mm	RMS

Camera Specifications
Sensor Type	CMOS
Sensor Optical Format	1/3"
Active Pixels	3M (2048 x 1534)
Pixel Size	2.2µm x 2.2µm
Active Sensor Area	4.51mm x 3.37mm
Shutter	electronic rolling shutter
Sensitivity	1.9V/Lux-sec
Spectral Response	380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate	28fps @ 2048x1534 53fps @ 1024x770
Connectivity	USB 3.0
Lens-mount	C-mount
Compensating Lens	0.37X
Power	5VDC over USB

Software

OS Requirements	Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features	Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping Mac/Linux Versions Live video preview Captures still images and video Exposure control Color adjustment Measurement tools, including lines, arcs, polygons
