.Accu-Scope Excelis HD Lite Microscope Camera w/ 13.3" Screen - AU-300-HDS

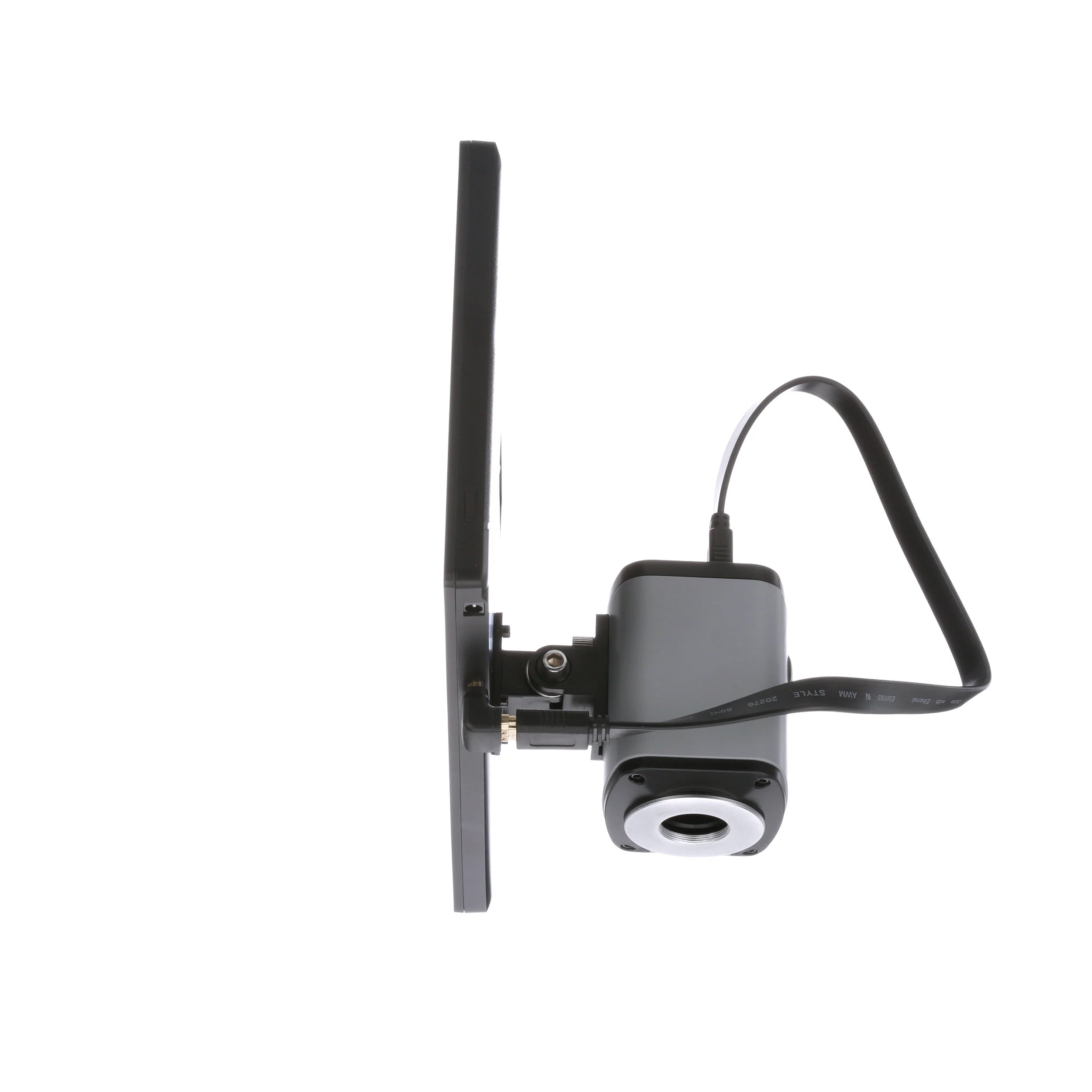

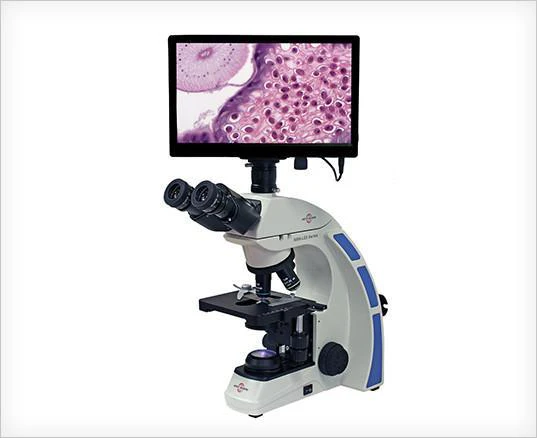

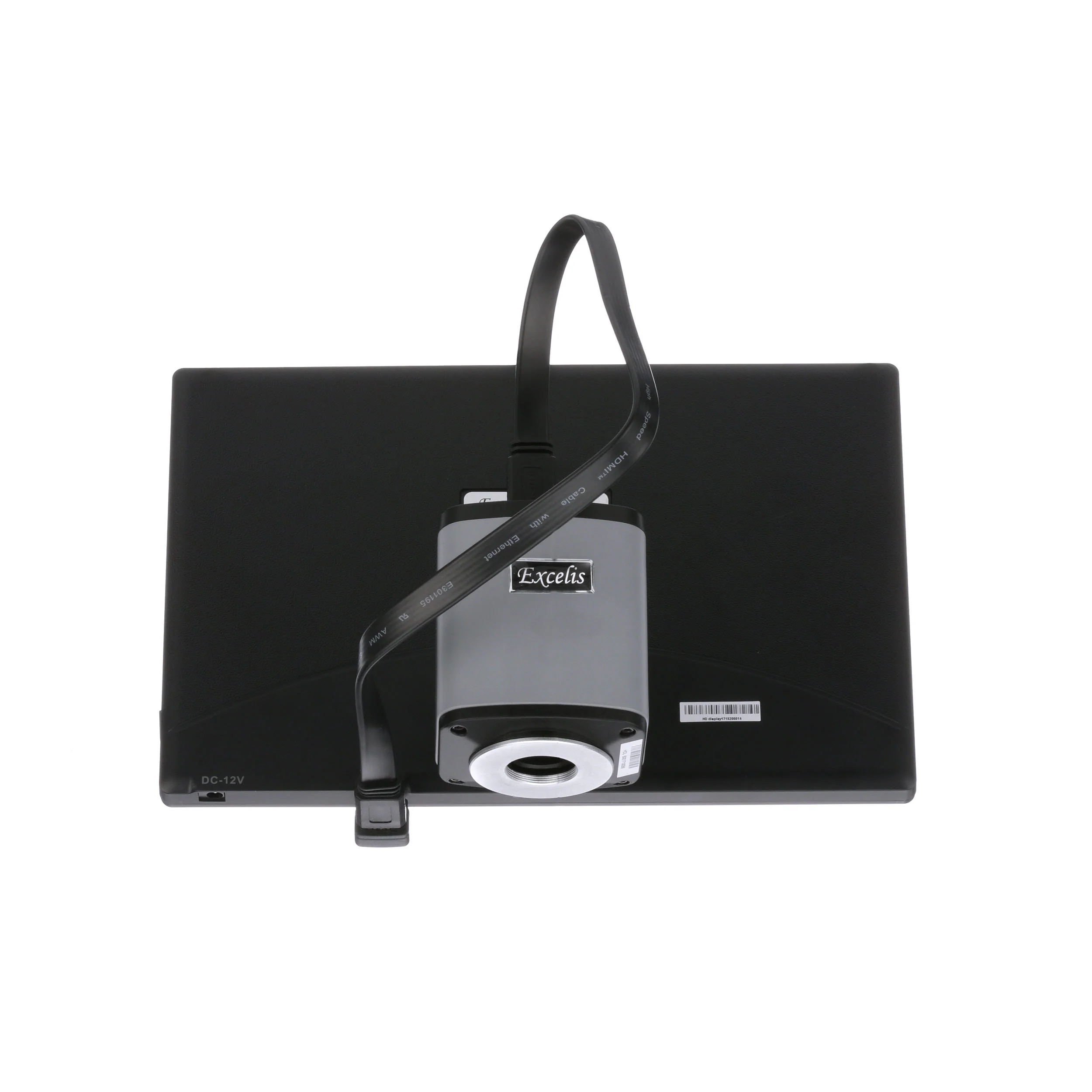

The Excelis HD Lite AU-300-HDS camera comes with an 13.3" retina display screen attached for a streamlined HD microscope camera solution. The screen allows the user to view and capture images/videos directly to the SD card. The camera accepts a mouse (included) which allows the user to have control of the camera settings, playback, computer, side by side comparison, and much more. Furthermore the camera can output to any screen via HDMI or USB to a computer. Take advantage of the free computer software for advanced image/video capture, annotation, extended depth of focus, stitching and much more. For a larger audience the camera can output via HDMI to a projector or larger screen!
Watch our demo video under the demo video tab to see the camera capabilities with the 13.3 inch HD screen or larger projector/screen!
Features:
- 1080p color camera with live video preview without any lag time or compression
- 6 M.P.
- HDMI & USB 2.0 output for video and images
- Built-in mouse control software for HDMI viewing/recording without a computer
- Simultaneous live image output to an HD monitor to a computer via USB 2.0
- On-board camera software with basic image controls: auto/manual exposure time, 3D noise reduction, 1080p video recording, magnify (ROI), rotate, flip images, side by side comparison, browse images/video playback from SD card (PC & Mac compatible)
- CaptaVision PC imaging software for more advanced image control, annotation & analysis
- Exposure time of 0.001 seconds to 10 seconds, 20 scales of Gain value and incredibly efficient 3D noise reduction for fluorescence applications
| Excelis Lite Specifications | |
|---|---|
| Screen: | Mountable 13.3" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.8 (0.35x C-mount recommended); SONY Starvis IMX335LQN-C |
| Frame Rate: |
HDMI (30fps) USB 2.0 (15fps) |
| Image Capture: |
High Speed SD Card (8GB) Accepts Class 10 SD Card, 32GB Max |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 1ms - 2sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+v3.0 Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: |
Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
|
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
What's Included in the Box:
- Excelis HD Camera
- 13.3" Retina display monitor with mounting brackets
- HDMI Cable
- HDMI adapter
- Y Power Splitter
- USB 2.0 Cable
- 12V Power Adapter
- 4GB SD Card
- Mouse
- CaptaVision PC Imaging Software
Demo Video
