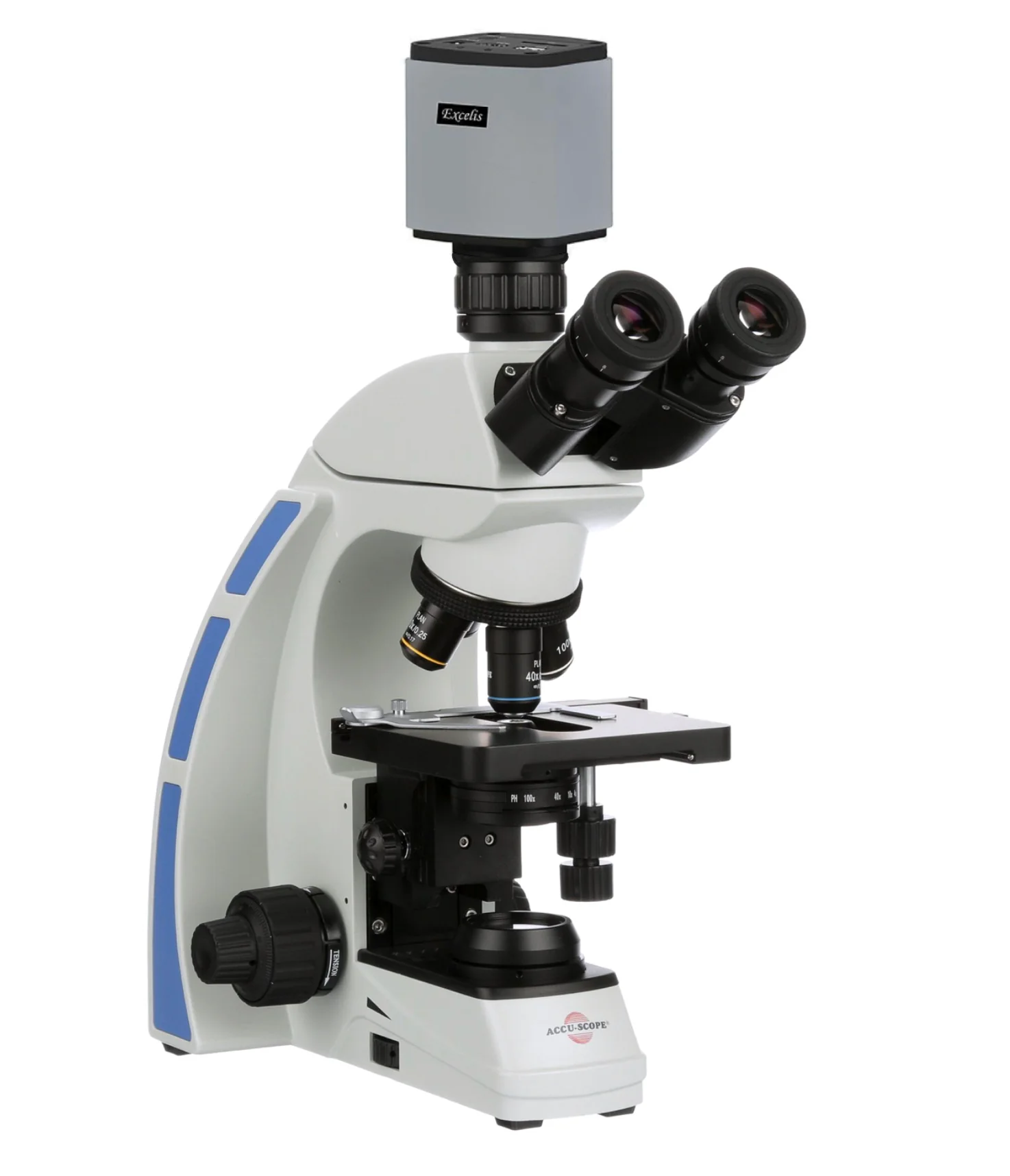

Accu-Scope 3000 Digital Microscope Package
THE 3000-LED HAS BEEN DISCONTINUED AND REPLACED WITH THE EXC-250 HD DIGITAL MICROSCOPE.
Accu-Scope 3000 is our best selling all around laboratory microscope and can now be paired with your choice of digital camera. This package includes all necessary adapters and software for capturing digital video and images, annotations, measurements, and more! The microscope comes complete with trinocular head and c-mount adapter. The 10x eyepieces provide you with a 20mm wide field of view while the infinity plan achromat 4x, 10x, 40x, and 100x oil objectives provide flat crisp images. The LED illumination system provides little to no heat and avoids downtime for bulb changes.
You can choose your Excelis camera model for this microscope, all models output HDMI to a monitor or USB to a computer. There are two base camera models the AU-300 or AU-600 the main difference is that the AU-600 has 6.0 M.P. and a slightly higher quality camera sensor while the AU-300 has 5.0 M.P. Both cameras have the option for an 11.6" HD retina display screen mounted to the camera for an all in one streamlined solution. If you would like the screen please choose form the AU-300-HDS or AU-600-HDS option. Any of these camera models come with software to capture images / videos, do measurements, extended depth of focus, annotations, stitching, and more!
| Accu-Scope 3000 Digital Video Microscope Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded) |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
| AU-300-HD Excelis Lite Specifications | |
|---|---|
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-300-HDS Excelis Lite Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-600-HD Excelis Camera Specifications | |
|---|---|
| Mega Pixel | 6.0 M.P. |
| Sensor: | SONY IMX236 |
| Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
| Live Resolution: | 1920 x 1080 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card |
| USB 2.0: 1080p, 30fps to PC or Mac | |
| Exposure Time: | 0.001sec—10.0 sec |
| Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
| PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| Software Compatibility: | Windows XP, Vista, 7, 8, 10 (32 or 64 bit) |
| Mac OSX (for image transfer to Mac OSX only) | |
| AU-600-HDS Excelis Camera Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920X1080 6 M.P. |
| Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
