Accu-Scope EXC-250 4K Digital Microscope - HDMI, WiFi, USB

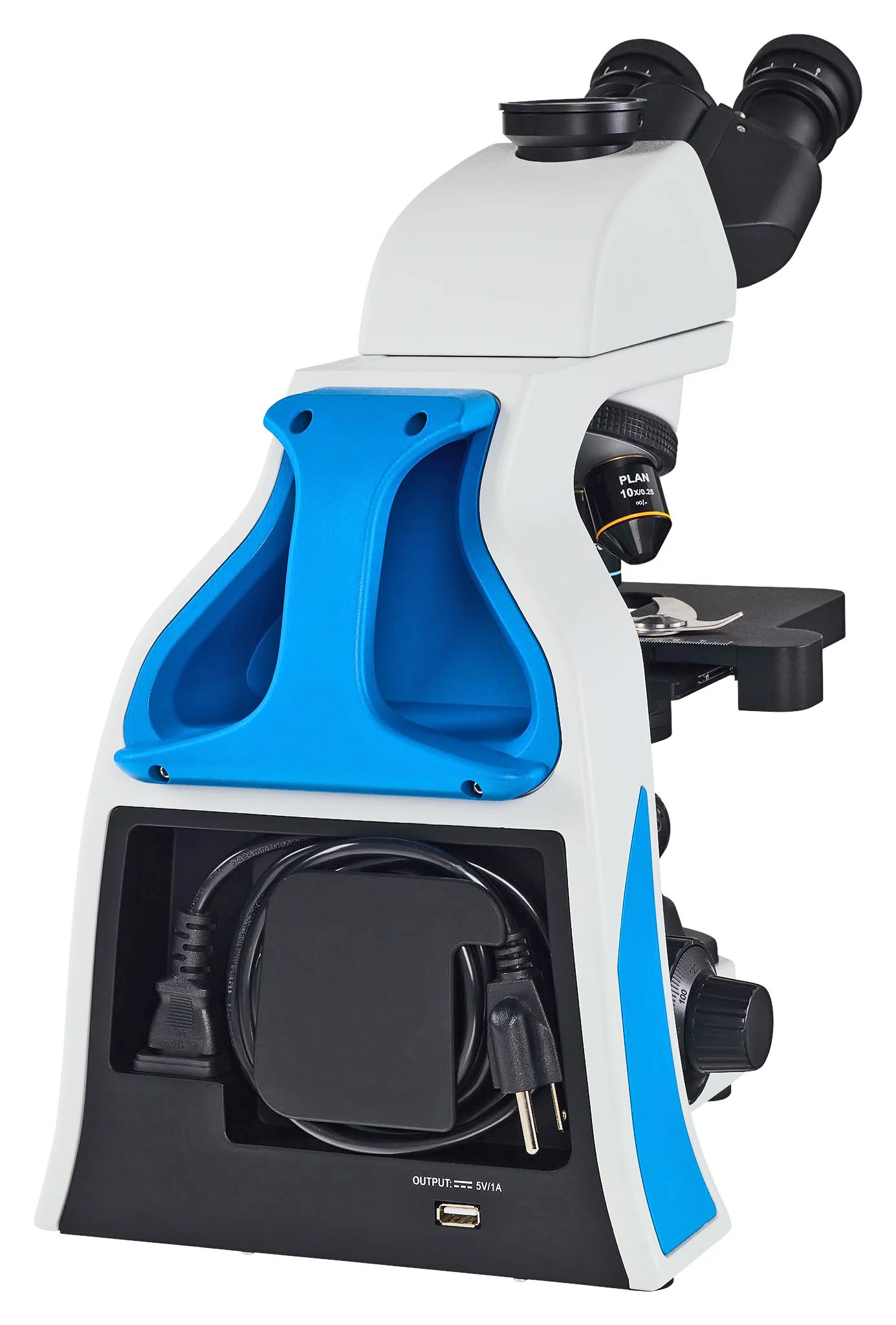

The Accu-Scope EXC-250 is our best selling all around laboratory microscope complete with a 4K high definition HDMI, WiFi, or USB output camera. This package includes all necessary adapters and software for capturing digital video and images, annotations, measurements, and more! The microscope comes complete with trinocular head and c-mount adapter. The 10x eyepieces provide you with a 20mm wide field of view while the infinity plan achromat 4x, 10x, 40x, and 100x oil objectives provide flat crisp images. The LED illumination system provides little to no heat and avoids downtime for bulb changes,
The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity and can output HDMI (4K Monitor NOT required), USB, or WiFi. You can choose the option to have an 13.3" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, use any of the other output methods listed below.
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included wireless mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone. Standing out from other HDMI cameras the View4K allows you more control such as giving you the option to name your image / video as its saved - rather than just saving them in number order.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.
| Accu-Scope EXC-250 Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR*, or 100xR oil* (*spring-loaded) Other Objectives |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Rackless Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |

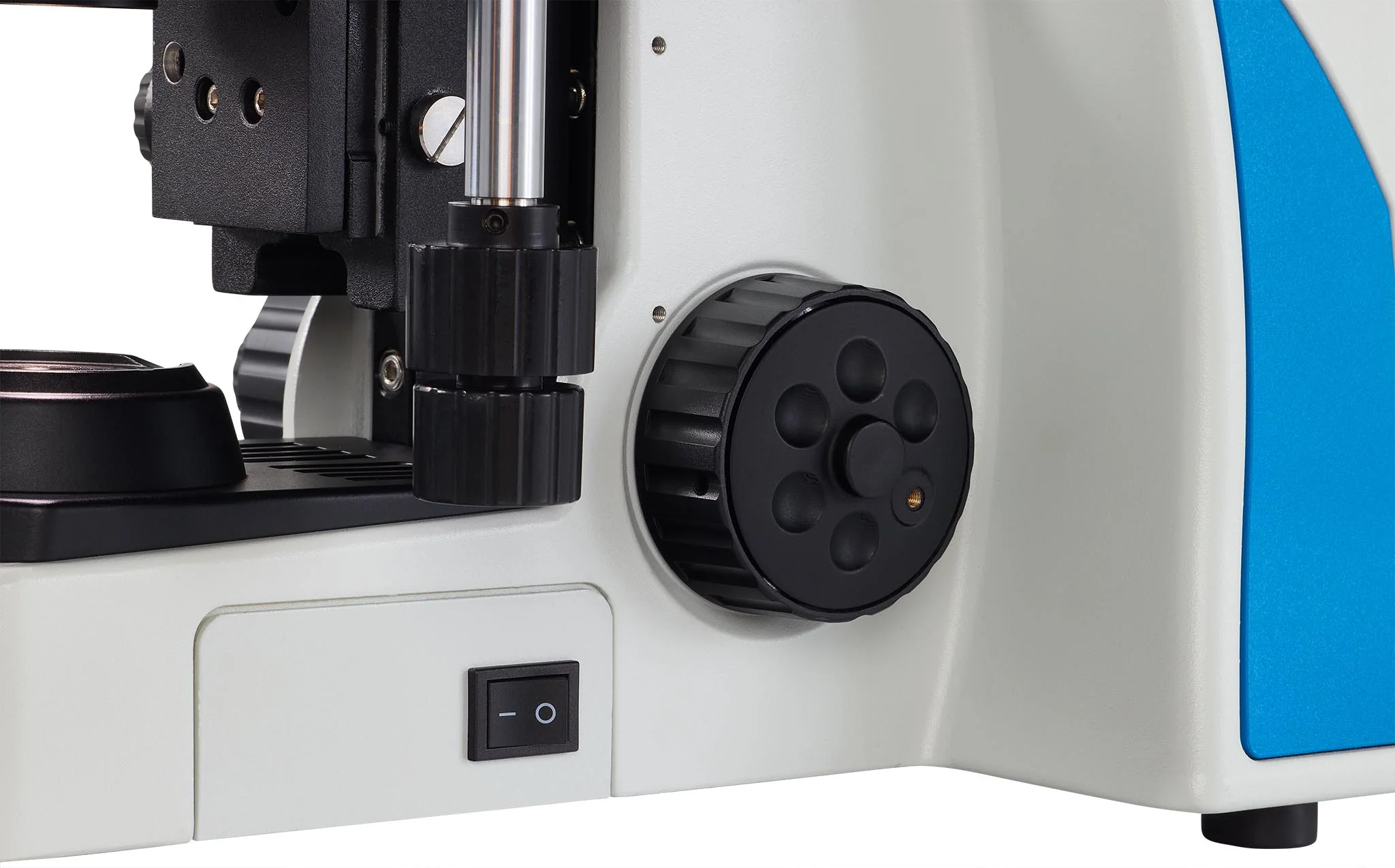

| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications:
| Screen: | Optional 13.3" Display Screen |
| Resolution (Live): | 4K (3840 x 2160) |
| Mega Pixels: | 8.0 M.P. |
| Sensor: | 1/1.8" Sony IMX678 - CMOS |
| Pixel Size: | 2.0 x 2.0μm |
| Sensitivity: | 1364mv with 1/30s |
| Shutter: | Rolling |
| Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
| Image & Video Capture: |
HDMI - Capture to USB Stick PC - Capture w/ software WiFi - Capture w/ APP |
| Exposure Time: | 0.019 - 1000ms |
| Output Modes: | HDMI, WiFi, USB, LAN (Network) |
| HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
|
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
| PC Software: |
Windows: Live video preview Mac: Live video preview |
| Warranty: | 1 year |
Accessories
Brochure
Accu-Scope EXC-250 BrochureThe Accu-Scope EXC-250 is our best selling all around laboratory microscope complete with a 4K high definition HDMI, WiFi, or USB output camera. This package includes all necessary adapters and software for capturing digital video and images, annotations, measurements, and more! The microscope comes complete with trinocular head and c-mount adapter. The 10x eyepieces provide you with a 20mm wide field of view while the infinity plan achromat 4x, 10x, 40x, and 100x oil objectives provide flat crisp images. The LED illumination system provides little to no heat and avoids downtime for bulb changes,
The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity and can output HDMI (4K Monitor NOT required), USB, or WiFi. You can choose the option to have an 13.3" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, use any of the other output methods listed below.
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included wireless mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone. Standing out from other HDMI cameras the View4K allows you more control such as giving you the option to name your image / video as its saved - rather than just saving them in number order.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.
| Accu-Scope EXC-250 Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR*, or 100xR oil* (*spring-loaded) Other Objectives |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Rackless Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications:
| Screen: | Optional 13.3" Display Screen |
| Resolution (Live): | 4K (3840 x 2160) |
| Mega Pixels: | 8.0 M.P. |
| Sensor: | 1/1.8" Sony IMX678 - CMOS |
| Pixel Size: | 2.0 x 2.0μm |
| Sensitivity: | 1364mv with 1/30s |
| Shutter: | Rolling |
| Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
| Image & Video Capture: |
HDMI - Capture to USB Stick PC - Capture w/ software WiFi - Capture w/ APP |
| Exposure Time: | 0.019 - 1000ms |
| Output Modes: | HDMI, WiFi, USB, LAN (Network) |
| HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
|
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
| PC Software: |
Windows: Live video preview Mac: Live video preview |
| Warranty: | 1 year |
Accessories
Brochure
Original: $3,306.00
-70%$3,306.00
$991.80Description
The Accu-Scope EXC-250 is our best selling all around laboratory microscope complete with a 4K high definition HDMI, WiFi, or USB output camera. This package includes all necessary adapters and software for capturing digital video and images, annotations, measurements, and more! The microscope comes complete with trinocular head and c-mount adapter. The 10x eyepieces provide you with a 20mm wide field of view while the infinity plan achromat 4x, 10x, 40x, and 100x oil objectives provide flat crisp images. The LED illumination system provides little to no heat and avoids downtime for bulb changes,
The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity and can output HDMI (4K Monitor NOT required), USB, or WiFi. You can choose the option to have an 13.3" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, use any of the other output methods listed below.
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included wireless mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone. Standing out from other HDMI cameras the View4K allows you more control such as giving you the option to name your image / video as its saved - rather than just saving them in number order.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.
| Accu-Scope EXC-250 Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR*, or 100xR oil* (*spring-loaded) Other Objectives |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Rackless Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications:
| Screen: | Optional 13.3" Display Screen |
| Resolution (Live): | 4K (3840 x 2160) |
| Mega Pixels: | 8.0 M.P. |
| Sensor: | 1/1.8" Sony IMX678 - CMOS |
| Pixel Size: | 2.0 x 2.0μm |
| Sensitivity: | 1364mv with 1/30s |
| Shutter: | Rolling |
| Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
| Image & Video Capture: |
HDMI - Capture to USB Stick PC - Capture w/ software WiFi - Capture w/ APP |
| Exposure Time: | 0.019 - 1000ms |
| Output Modes: | HDMI, WiFi, USB, LAN (Network) |
| HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
|
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
| PC Software: |
Windows: Live video preview Mac: Live video preview |
| Warranty: | 1 year |
