Accu-Scope EXC-400 Digital Dermatology Pathology Microscope

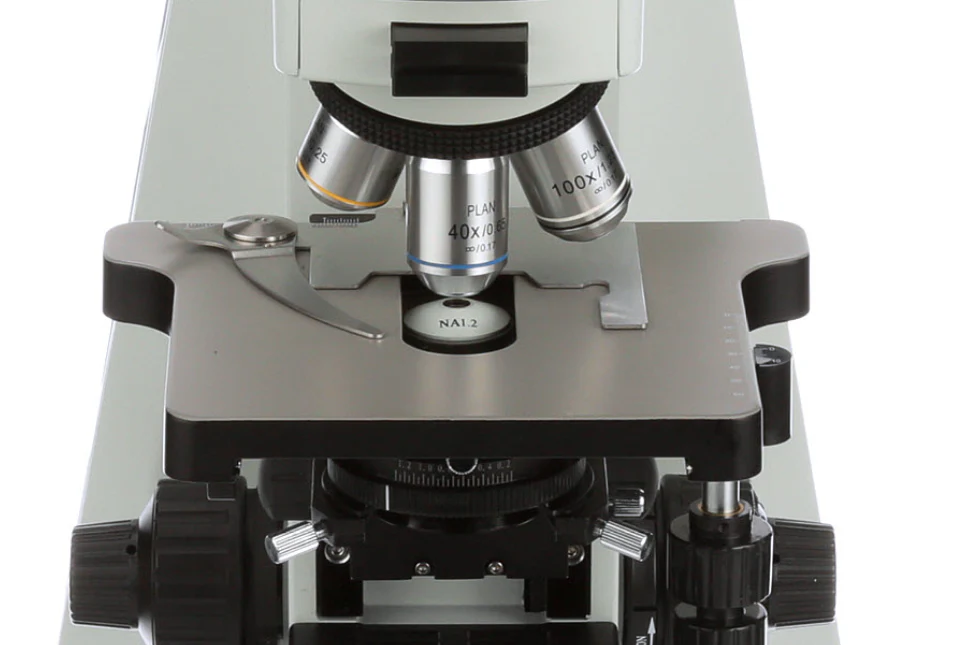

This high definition digital pathology grade microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. The The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 2x, 4x, 10x, 20, you can add an optional 40x objective. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. You can remove the slide holder for freehand use. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser is supplied for use with the 2x objective lens. The LED variable illuminator provides over 20,000 hours of use and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can upgraded to come with a high speed camera, or dual viewing attachment, Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Head: | Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
Accessories
Product Video
Brochure
This high definition digital pathology grade microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. The The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 2x, 4x, 10x, 20, you can add an optional 40x objective. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. You can remove the slide holder for freehand use. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser is supplied for use with the 2x objective lens. The LED variable illuminator provides over 20,000 hours of use and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can upgraded to come with a high speed camera, or dual viewing attachment, Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Head: | Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
Accessories
Product Video
Brochure
Original: $4,990.00
-70%$4,990.00
$1,497.00Description
This high definition digital pathology grade microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. The The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 2x, 4x, 10x, 20, you can add an optional 40x objective. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. You can remove the slide holder for freehand use. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser is supplied for use with the 2x objective lens. The LED variable illuminator provides over 20,000 hours of use and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can upgraded to come with a high speed camera, or dual viewing attachment, Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Head: | Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
