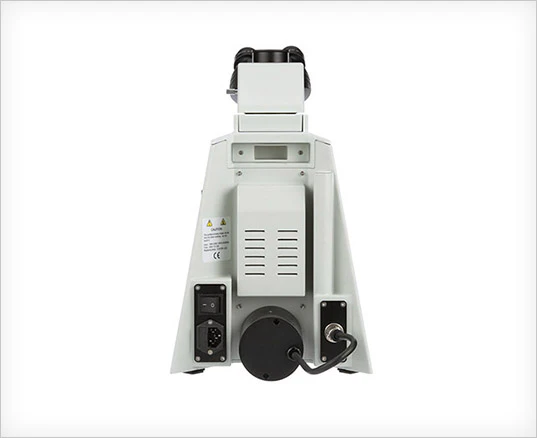

Accu-Scope EXC-400 Dual Viewing Face-To-Face Microscope
This dual viewing face-to-face clinical microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. You can choose between a trinocular, or ergonomic tilting binouclar head for the primary viewing head. A binocular head is provided for the secondary viewing head. The side-by-side bridge has a built in LED pointer. The 10x focusing eyepieces provide a 22mm (20mm for secondary head) field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. There are wide selection of other objectives available for this microscope to meet your specific laboratory needs. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser allows for the addition of a 2x objective to meet the demands of pathology, dermatology, or histology applications. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
| Specifications | |
|---|---|
| Main Head: |
Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split Or Ergonomic Tilting Head 5° to 35° |
| Secondary Head: | Binocular (Can Upgrade To Ergo) |
| Dual Bridge: | Face-To-Face w/ LED Pointer |
| Eyepieces: |
WF10x/22mm focusing eyepieces with eyeguards - Primary Head WF10x/20mm focusing eyepieces with eyeguards - Secondary Head |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: |
Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -Or- Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Product Video
Brochure
This dual viewing face-to-face clinical microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. You can choose between a trinocular, or ergonomic tilting binouclar head for the primary viewing head. A binocular head is provided for the secondary viewing head. The side-by-side bridge has a built in LED pointer. The 10x focusing eyepieces provide a 22mm (20mm for secondary head) field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. There are wide selection of other objectives available for this microscope to meet your specific laboratory needs. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser allows for the addition of a 2x objective to meet the demands of pathology, dermatology, or histology applications. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
| Specifications | |
|---|---|
| Main Head: |
Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split Or Ergonomic Tilting Head 5° to 35° |
| Secondary Head: | Binocular (Can Upgrade To Ergo) |
| Dual Bridge: | Face-To-Face w/ LED Pointer |
| Eyepieces: |
WF10x/22mm focusing eyepieces with eyeguards - Primary Head WF10x/20mm focusing eyepieces with eyeguards - Secondary Head |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: |
Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -Or- Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Product Video
Brochure
Original: $8,415.00
-70%$8,415.00
$2,524.50Description
This dual viewing face-to-face clinical microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. You can choose between a trinocular, or ergonomic tilting binouclar head for the primary viewing head. A binocular head is provided for the secondary viewing head. The side-by-side bridge has a built in LED pointer. The 10x focusing eyepieces provide a 22mm (20mm for secondary head) field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. There are wide selection of other objectives available for this microscope to meet your specific laboratory needs. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser allows for the addition of a 2x objective to meet the demands of pathology, dermatology, or histology applications. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
| Specifications | |
|---|---|
| Main Head: |
Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split Or Ergonomic Tilting Head 5° to 35° |
| Secondary Head: | Binocular (Can Upgrade To Ergo) |
| Dual Bridge: | Face-To-Face w/ LED Pointer |
| Eyepieces: |
WF10x/22mm focusing eyepieces with eyeguards - Primary Head WF10x/20mm focusing eyepieces with eyeguards - Secondary Head |
| Nosepiece: | Reversed quintuple nosepiece, with slot |
| Objectives: |
Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -Or- Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives |
| Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |
| Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
| Focusing: | Coaxial low position ergonomic coarse & fine focus |
| Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
