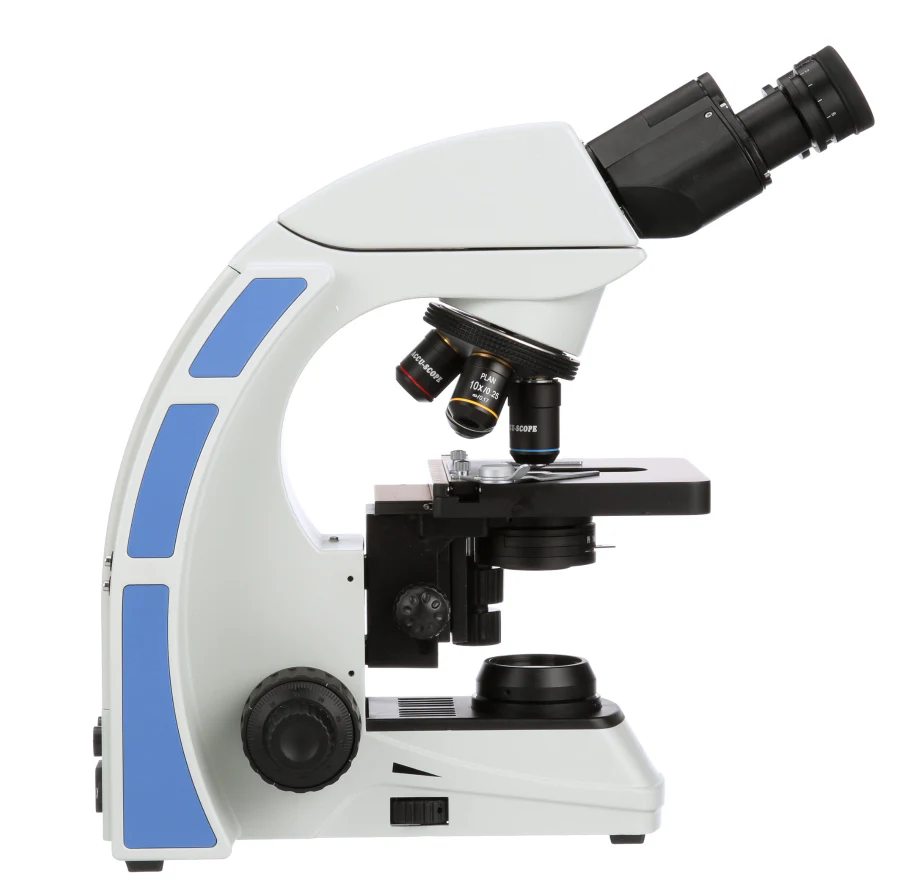

Accu-Scope 3000 LED Phase Contrast Microscope
The Accu-Scope 3000 LED phase contrast microscope comes with your option of a binocular or trinocular viewing head. The microscope has 10x eyepieces with a 20mm field of view. You can select from the following objective configurations: Phase 10x & 40x, Brightfield 4x Phase 10x, 40x, 100x Oil, or Brightfield 4x, Phase 20x, 40x, 100x Oil. To achieve phase contrast this uses a phase contrast slider which will be provided to match the objectives you select. Two phase sliders will be provided if you choose any of the four objective configurations as one slider has the 10x & 40x phase positions, while another has the 20x & 40x positions. The microscope features LED illumination so you do not have to worry about heat, or bulb changes!
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: |
Phase 10x & 40x Phase - Standard 4x, Phase 10x, 40x, 100x Oil 4x, Phase 20x, 40x, 100x Oil Note: 4x, Phase 10x, 40x, 100x Oil and 4x, Phase 20x, 40x, 100 oil requires two phase contrast sliders which are included. |
| Condenser: | N.A. 1.25 Abbe condenser with phase contrast slider |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3000 / 3001 LED BrochureThe Accu-Scope 3000 LED phase contrast microscope comes with your option of a binocular or trinocular viewing head. The microscope has 10x eyepieces with a 20mm field of view. You can select from the following objective configurations: Phase 10x & 40x, Brightfield 4x Phase 10x, 40x, 100x Oil, or Brightfield 4x, Phase 20x, 40x, 100x Oil. To achieve phase contrast this uses a phase contrast slider which will be provided to match the objectives you select. Two phase sliders will be provided if you choose any of the four objective configurations as one slider has the 10x & 40x phase positions, while another has the 20x & 40x positions. The microscope features LED illumination so you do not have to worry about heat, or bulb changes!
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: |
Phase 10x & 40x Phase - Standard 4x, Phase 10x, 40x, 100x Oil 4x, Phase 20x, 40x, 100x Oil Note: 4x, Phase 10x, 40x, 100x Oil and 4x, Phase 20x, 40x, 100 oil requires two phase contrast sliders which are included. |
| Condenser: | N.A. 1.25 Abbe condenser with phase contrast slider |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Description
The Accu-Scope 3000 LED phase contrast microscope comes with your option of a binocular or trinocular viewing head. The microscope has 10x eyepieces with a 20mm field of view. You can select from the following objective configurations: Phase 10x & 40x, Brightfield 4x Phase 10x, 40x, 100x Oil, or Brightfield 4x, Phase 20x, 40x, 100x Oil. To achieve phase contrast this uses a phase contrast slider which will be provided to match the objectives you select. Two phase sliders will be provided if you choose any of the four objective configurations as one slider has the 10x & 40x phase positions, while another has the 20x & 40x positions. The microscope features LED illumination so you do not have to worry about heat, or bulb changes!
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: |
Phase 10x & 40x Phase - Standard 4x, Phase 10x, 40x, 100x Oil 4x, Phase 20x, 40x, 100x Oil Note: 4x, Phase 10x, 40x, 100x Oil and 4x, Phase 20x, 40x, 100 oil requires two phase contrast sliders which are included. |
| Condenser: | N.A. 1.25 Abbe condenser with phase contrast slider |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
