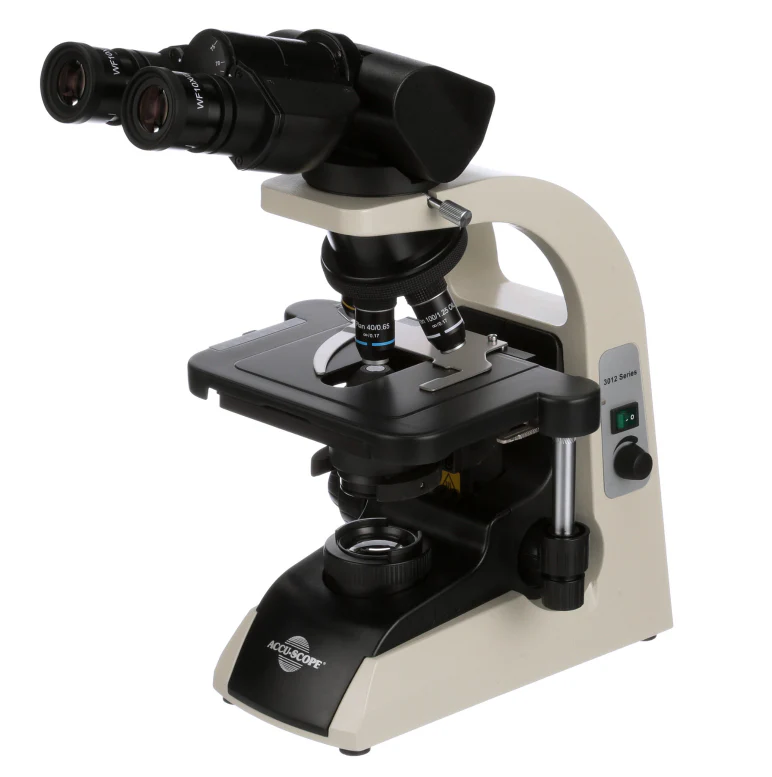

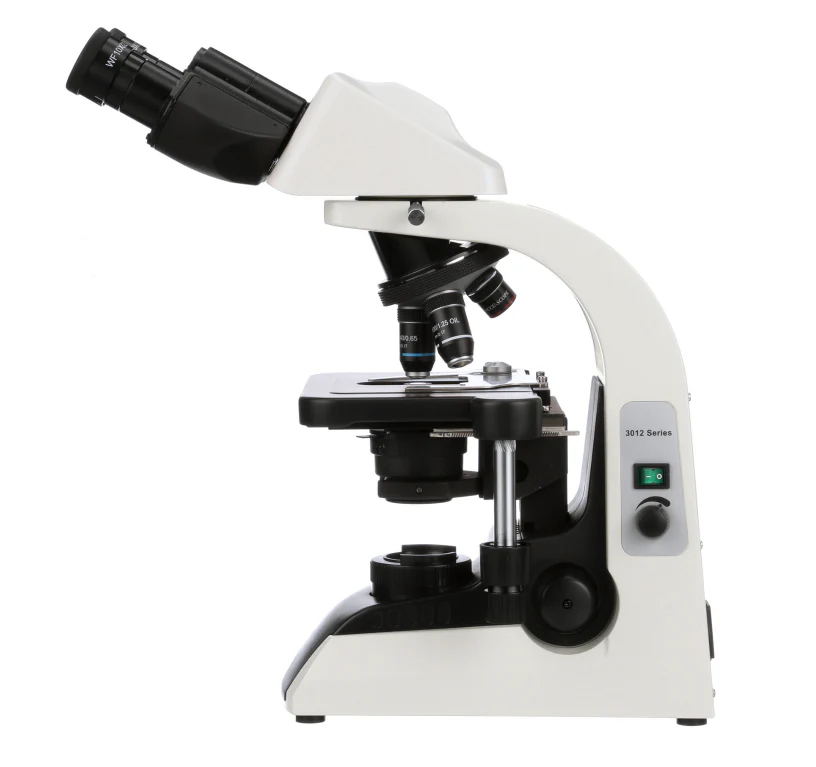

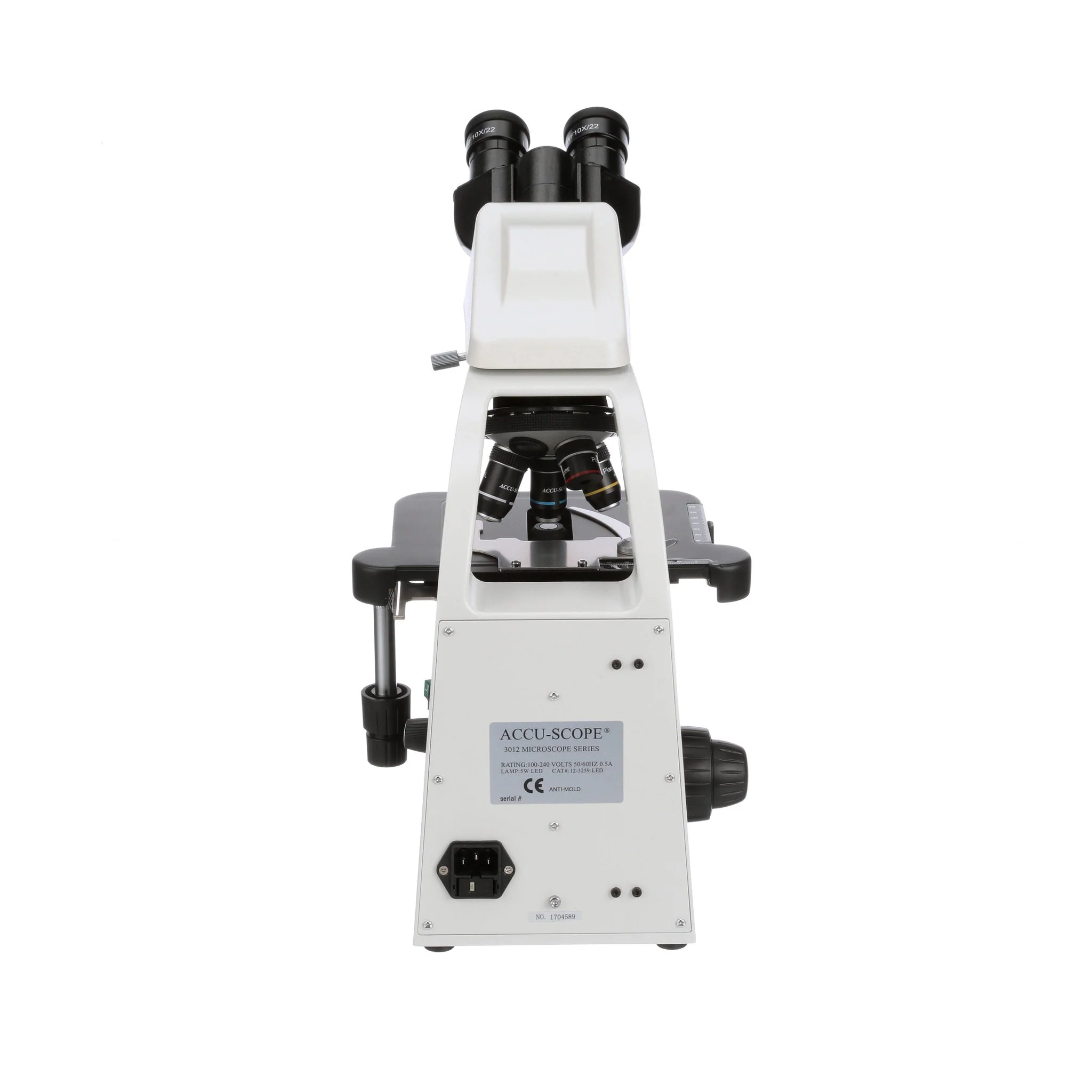

Accu-Scope 3012 Fine Needle Aspiration Microscope
The Accu-Scope 3012 Fine NeedleĀ Aspiration Microscope is designed to meet the demand of laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 60x objective lenses. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.
Ā
| Specifications: | |
|---|---|
| Head: |
Binocular -Ā 30ā° inclined and rotatable 360ā° Ergo Tilting Binocular -Ā 5ā° to 30ā° inclination range Trinocular - 50/50 Light Split, 30ā° inclined and rotatable 360ā° |
| Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed, quintuple |
| Objectives: |
AIS E Plan Achromat Infinity 4x, 10x, 40x, andĀ 60x Ā |
| Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
| Focusing: | Coaxial coarse and fine focus controls |
| Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
| Accessories: | Dust cover, immersion oil, & instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3012 Microscope Brochure
The Accu-Scope 3012 Fine NeedleĀ Aspiration Microscope is designed to meet the demand of laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 60x objective lenses. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.
Ā
| Specifications: | |
|---|---|
| Head: |
Binocular -Ā 30ā° inclined and rotatable 360ā° Ergo Tilting Binocular -Ā 5ā° to 30ā° inclination range Trinocular - 50/50 Light Split, 30ā° inclined and rotatable 360ā° |
| Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed, quintuple |
| Objectives: |
AIS E Plan Achromat Infinity 4x, 10x, 40x, andĀ 60x Ā |
| Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
| Focusing: | Coaxial coarse and fine focus controls |
| Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
| Accessories: | Dust cover, immersion oil, & instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3012 Microscope Brochure
Original: $1,868.00
-70%$1,868.00
$560.40Description
