Accu-Scope 3000 Hematology Microscope
THIS MODEL HAS BEEN DISCONTINUED AND REPLACED BY THE ACCU-SCOPE EXC-250 HEMATOLOGY MICROSCOPE.

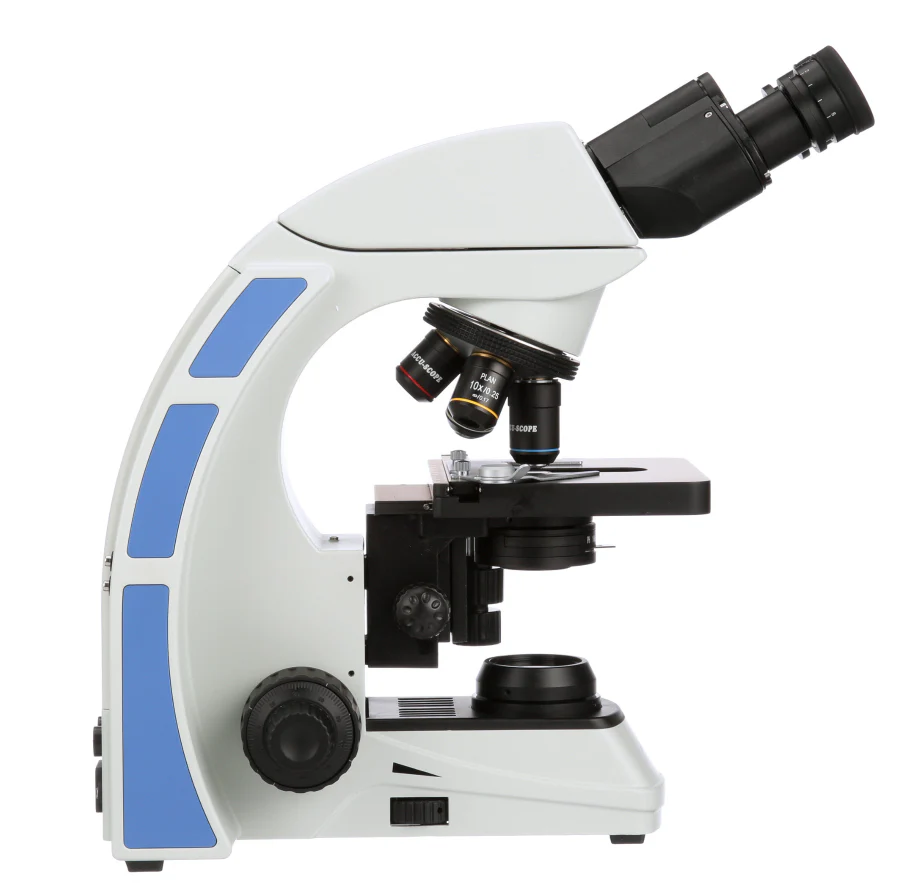

The Accu-Scope 3000-LED microscope configured for hematology applications is a high quality laboratory grade microscope. You can choose between a binocular or a trinocular viewing head. The 10x eyepieces provide a large 20mm field of view, allowing you to view more of your specimen. A set of infinity plan achromat 10x, 40x, 50x Oil, and 100x Oil offer sharp high resolution images. The mechanical XY stage provides smooth and precise movements. A 1.25 N.A. condenser is fully focusable and the 3 watt LED illumination system offers variable intensity. This reliable microscope has all metal internal gears with a solid build and feel.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 10x, 40xR*, 50x Oil R* 100x Oil R* (*spring-loaded) |
| Condenser: | N.A. 1.25 Abbe condenser |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3000 / 3001 LED Brochure
