Accu-Scope 3000 Fine Needle Aspiration Microscope

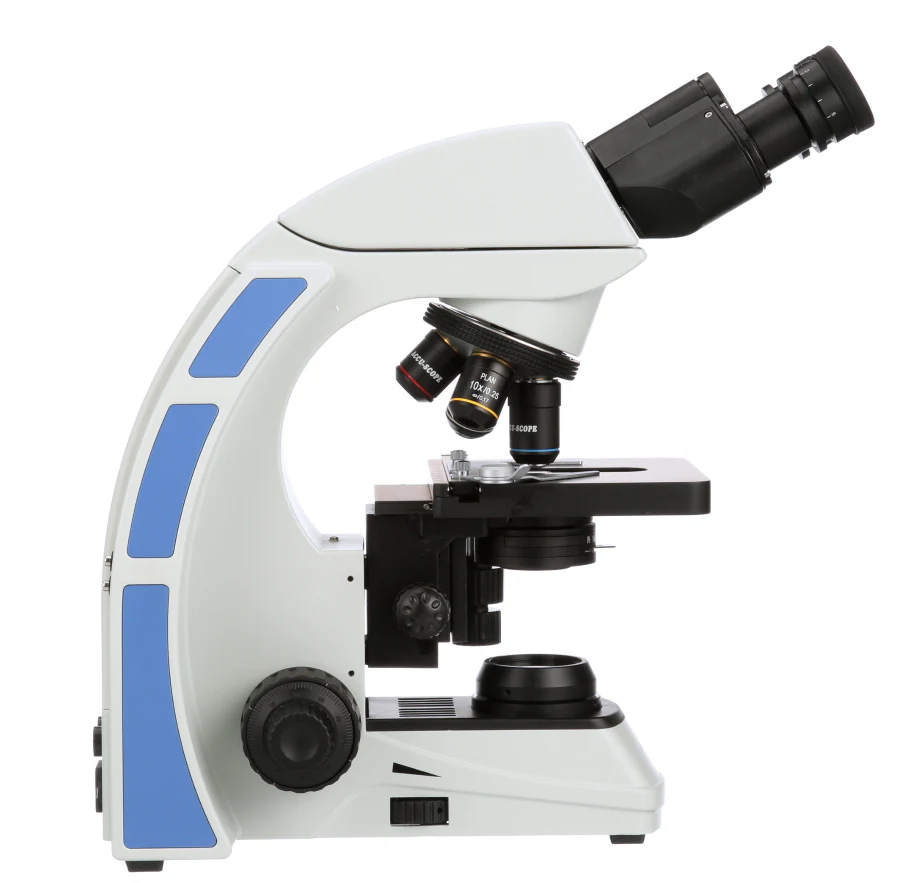

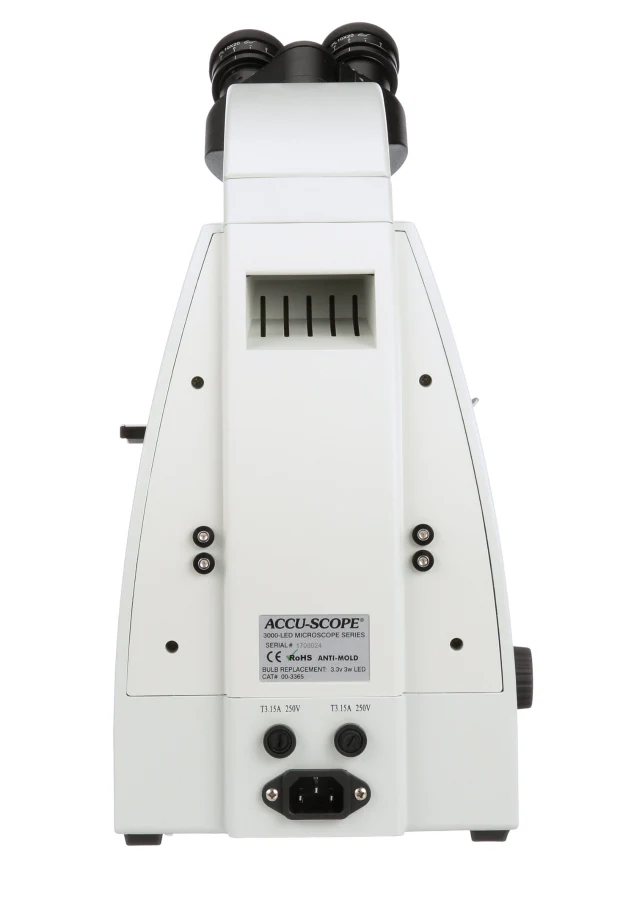

The Accu-Scope 3000-LED is our all around top selling microscope. You can select from a binocular or trinocular viewing head. The 10x eyepieces offer a wide 20mm field of view. The Fine Needle Aspiration configuration includes 4x, 10x, 40x, 60x plan achromatic objectives. The microscope features a mechanical XY stage and a 1.25 N.A. focusable condenser. The LED illumination provides smooth and crisp light.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40x, 60x |
| Condenser: | N.A. 1.25 Abbe condenser |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3000 / 3001 LED BrochureThe Accu-Scope 3000-LED is our all around top selling microscope. You can select from a binocular or trinocular viewing head. The 10x eyepieces offer a wide 20mm field of view. The Fine Needle Aspiration configuration includes 4x, 10x, 40x, 60x plan achromatic objectives. The microscope features a mechanical XY stage and a 1.25 N.A. focusable condenser. The LED illumination provides smooth and crisp light.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40x, 60x |
| Condenser: | N.A. 1.25 Abbe condenser |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Description
The Accu-Scope 3000-LED is our all around top selling microscope. You can select from a binocular or trinocular viewing head. The 10x eyepieces offer a wide 20mm field of view. The Fine Needle Aspiration configuration includes 4x, 10x, 40x, 60x plan achromatic objectives. The microscope features a mechanical XY stage and a 1.25 N.A. focusable condenser. The LED illumination provides smooth and crisp light.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40x, 60x |
| Condenser: | N.A. 1.25 Abbe condenser |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
