LW Scientific Revelation III Microscope

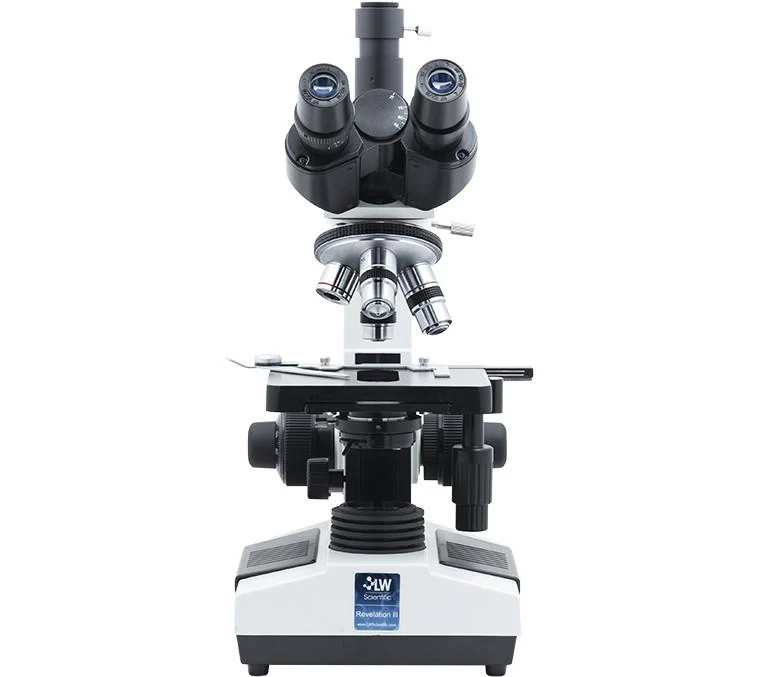

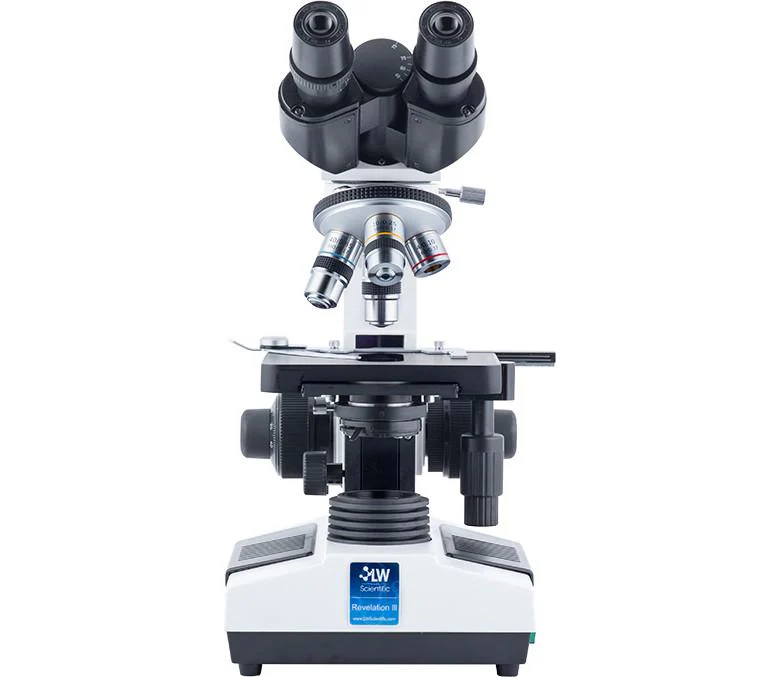

The LW Scientific Revelation III microscope is a popular selling microscope perfect for veterinary applications, medical schools, or physicians offices. Choose between binocular or trinocular heads, the microscope comes standard with 10x/18mm eyepieces and LED illumination. You can choose between DIN Achromati or DIN Plan 4x, 10x, 40x, 100x oil objectives.
| Specifications | |
|---|---|
| Head: | Binocular or Trinocular Inclined 30°, rotates 360° |
| Eyepieces: | 10x/18mm WF eyepieces |
| Objectives: | DIN Achromatic or DIN Plan 4x, 10x, 40xR, 100xR oil objectives |
| Stage: | Mechanical stage (140mm x 130mm), Coaxial drive controls, Range of traverse: 78mm x 50mm |
| Focus: | Coarse adjustment: range of 30mm Fine adjustment: graduation of 2μm Tension control knob |
| Condenser: | Focusable Abbe condenser, NA 1.25, rack & pinion |
| Illumination: | 3W Variable LED light source, 100-240V / 50-60Hz automatic-switching electronics |
| Warranty: | Lifetime warranty against defects. 1 Year electrical warranty. |
The LW Scientific Revelation III microscope is a popular selling microscope perfect for veterinary applications, medical schools, or physicians offices. Choose between binocular or trinocular heads, the microscope comes standard with 10x/18mm eyepieces and LED illumination. You can choose between DIN Achromati or DIN Plan 4x, 10x, 40x, 100x oil objectives.
| Specifications | |
|---|---|
| Head: | Binocular or Trinocular Inclined 30°, rotates 360° |
| Eyepieces: | 10x/18mm WF eyepieces |
| Objectives: | DIN Achromatic or DIN Plan 4x, 10x, 40xR, 100xR oil objectives |
| Stage: | Mechanical stage (140mm x 130mm), Coaxial drive controls, Range of traverse: 78mm x 50mm |
| Focus: | Coarse adjustment: range of 30mm Fine adjustment: graduation of 2μm Tension control knob |
| Condenser: | Focusable Abbe condenser, NA 1.25, rack & pinion |
| Illumination: | 3W Variable LED light source, 100-240V / 50-60Hz automatic-switching electronics |
| Warranty: | Lifetime warranty against defects. 1 Year electrical warranty. |
Description
The LW Scientific Revelation III microscope is a popular selling microscope perfect for veterinary applications, medical schools, or physicians offices. Choose between binocular or trinocular heads, the microscope comes standard with 10x/18mm eyepieces and LED illumination. You can choose between DIN Achromati or DIN Plan 4x, 10x, 40x, 100x oil objectives.
| Specifications | |
|---|---|
| Head: | Binocular or Trinocular Inclined 30°, rotates 360° |
| Eyepieces: | 10x/18mm WF eyepieces |
| Objectives: | DIN Achromatic or DIN Plan 4x, 10x, 40xR, 100xR oil objectives |
| Stage: | Mechanical stage (140mm x 130mm), Coaxial drive controls, Range of traverse: 78mm x 50mm |
| Focus: | Coarse adjustment: range of 30mm Fine adjustment: graduation of 2μm Tension control knob |
| Condenser: | Focusable Abbe condenser, NA 1.25, rack & pinion |
| Illumination: | 3W Variable LED light source, 100-240V / 50-60Hz automatic-switching electronics |
| Warranty: | Lifetime warranty against defects. 1 Year electrical warranty. |
