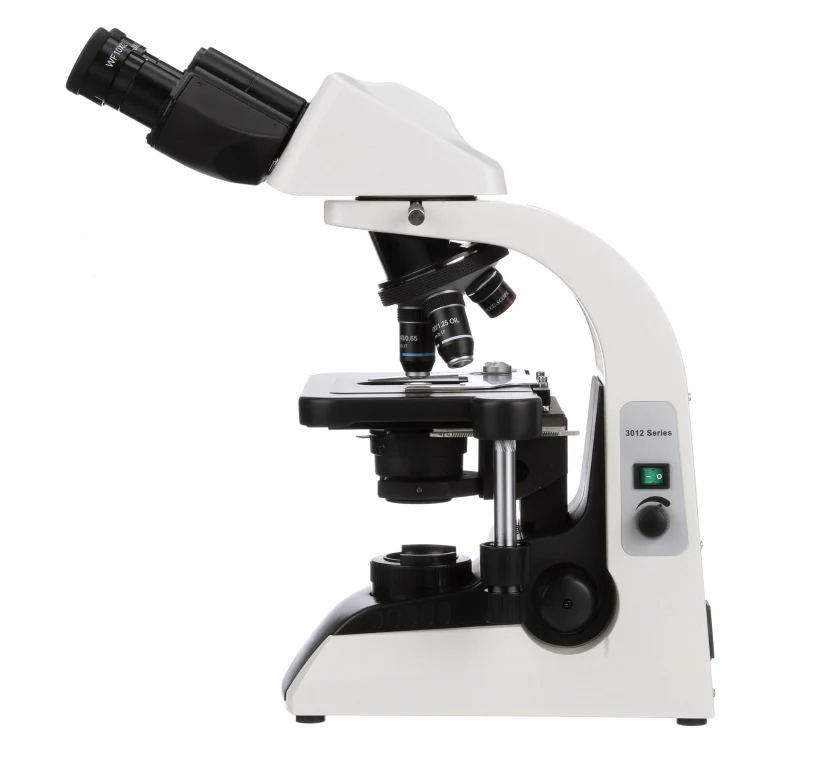

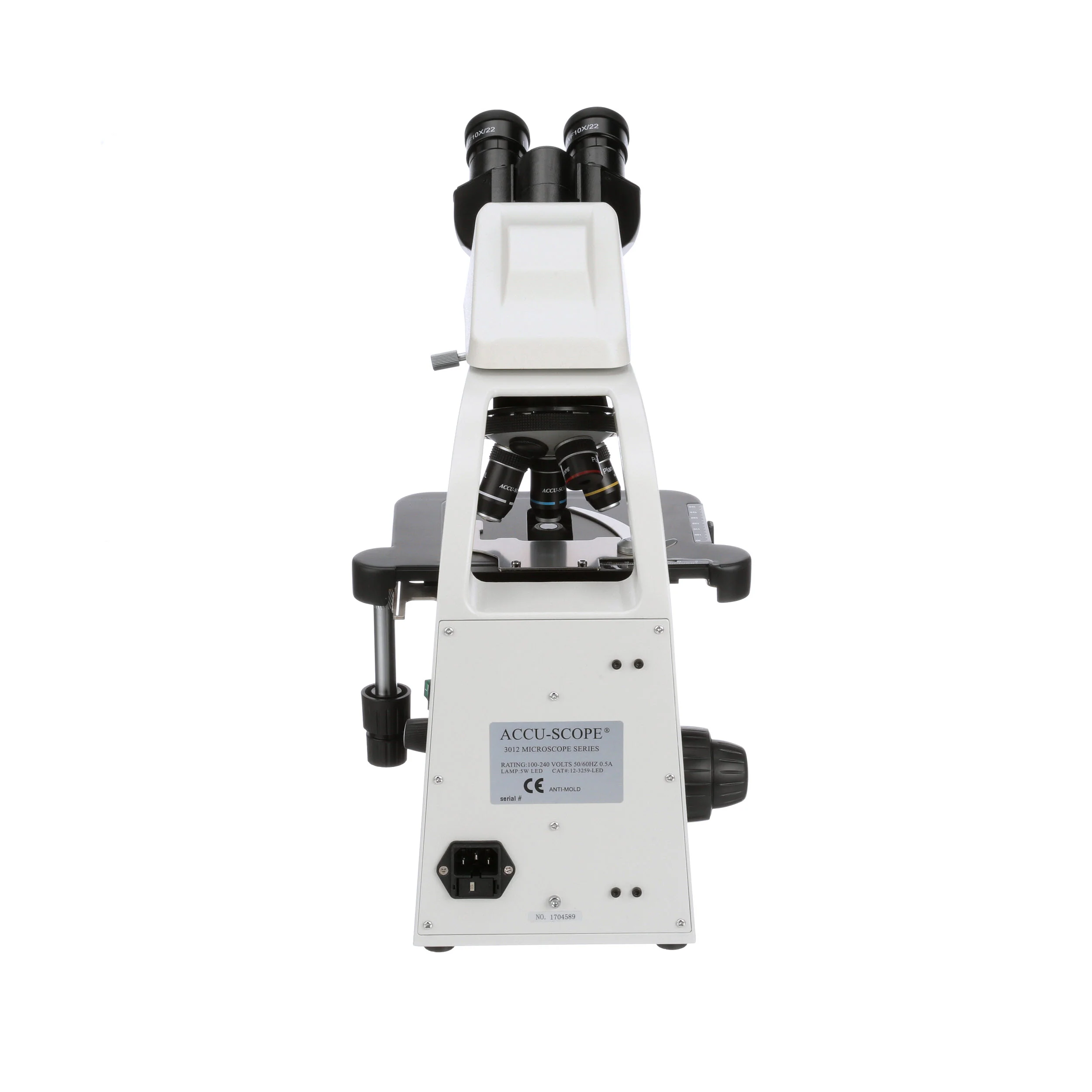

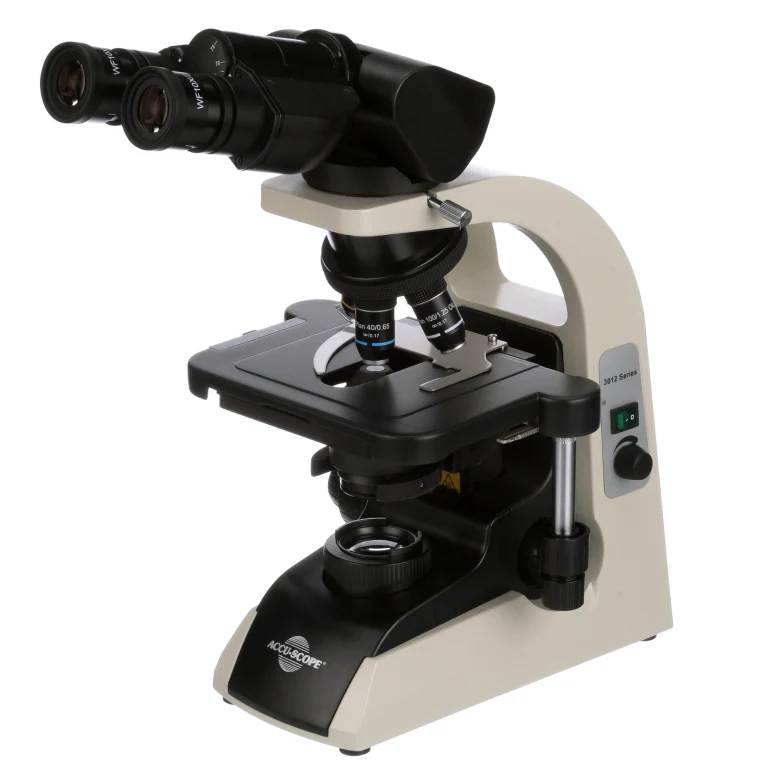

Accu-Scope 3012 / 3013 LED Microscope Series
The Accu-Scope 3012 Microscope is designed to meet the demand of educational and laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. We can even supply a 100x dry or 100x water immersion objective to eliminate the need for oil altogether. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.
| Specifications: | |
|---|---|
| Head: |
Binocular - 30⁰ inclined and rotatable 360⁰ Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed, quintuple |
| Objectives: |
Choose: AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives, AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Dry Objectives, or AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Water Objectives |
| Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
| Focusing: | Coaxial coarse and fine focus controls |
| Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
| Accessories: | Dust cover, immersion oil, & instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
The Accu-Scope 3012 Microscope is designed to meet the demand of educational and laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. We can even supply a 100x dry or 100x water immersion objective to eliminate the need for oil altogether. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.
| Specifications: | |
|---|---|
| Head: |
Binocular - 30⁰ inclined and rotatable 360⁰ Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed, quintuple |
| Objectives: |
Choose: AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives, AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Dry Objectives, or AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Water Objectives |
| Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
| Focusing: | Coaxial coarse and fine focus controls |
| Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
| Accessories: | Dust cover, immersion oil, & instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Original: $1,300.00
-70%$1,300.00
$390.00Description
The Accu-Scope 3012 Microscope is designed to meet the demand of educational and laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. We can even supply a 100x dry or 100x water immersion objective to eliminate the need for oil altogether. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.
| Specifications: | |
|---|---|
| Head: |
Binocular - 30⁰ inclined and rotatable 360⁰ Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
| Nosepiece: | Reversed, quintuple |
| Objectives: |
Choose: AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives, AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Dry Objectives, or AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Water Objectives |
| Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
| Focusing: | Coaxial coarse and fine focus controls |
| Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
| Accessories: | Dust cover, immersion oil, & instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
