Accu-Scope 3000 LED PCM Microscope NIOSH 7400
This model has been discontiued and replaced with the Accu-Scope EXC-250 PCM Microscope.

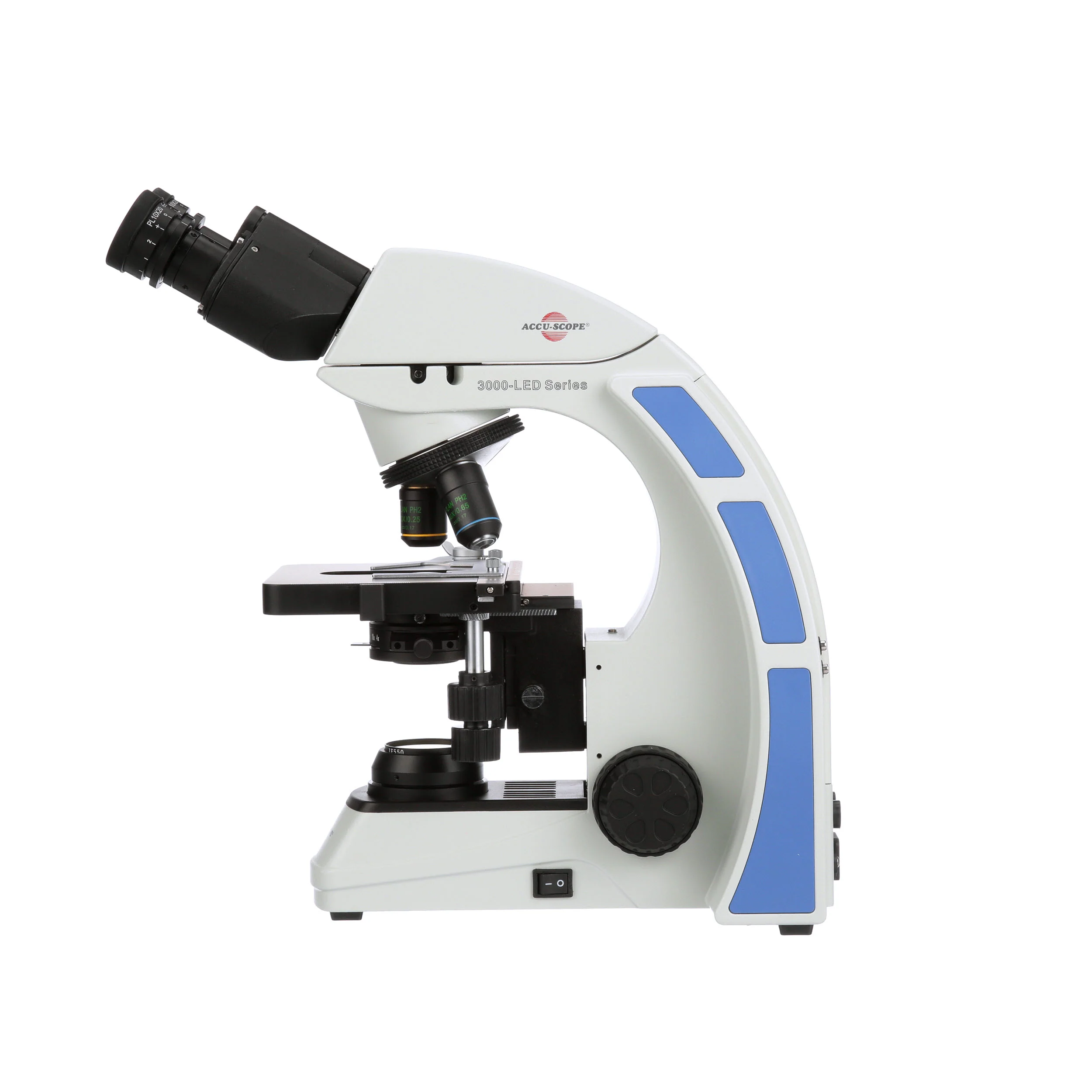

Accu-Scope 3000-LED configured for Asbestos PCM fiber counting. This PCM microscope is durable and designed to handle fieldwork. The all metal cast frame, head, and gears make this scope reliable & durable. This meets the NIOSH 7400 & OSHA ID 160 requirements. This microscope comes with your choose of a binocular or trinocular viewing head. The 10x eyepieces provide a 20mm field of view, one eyepiece will have a Walton Beckett reticle installed in it. The 10x and 40x are phase contrast plan achromat objectives. A 3 position pre-centered phase slider has 10x phase, 40x phase, and brightfield settings. The LED illumination provides even illumination. Optional form fitted aluminum locking case is available for the Accu-Scope 3000-LED microscope. Since the phase slider is pre-centered a phase telescope is not included and can be purchased separately if desired
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: |
HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; Walton Beckett Reticle in one eyepiece |
| Nosepiece: | Reversed, quadruple, ball bearing with wide rubber grip for easy rotation |
| Objectives: | Plan Phase Contrast 10x and 40xR |
| Condenser: | Abbe condenser, N.A. 1.25 with phase slider with 10x & 40x annuli and Brightfield position, & green filter |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: | 3 watt LED with variable intensity control |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, green filter, & manual included |

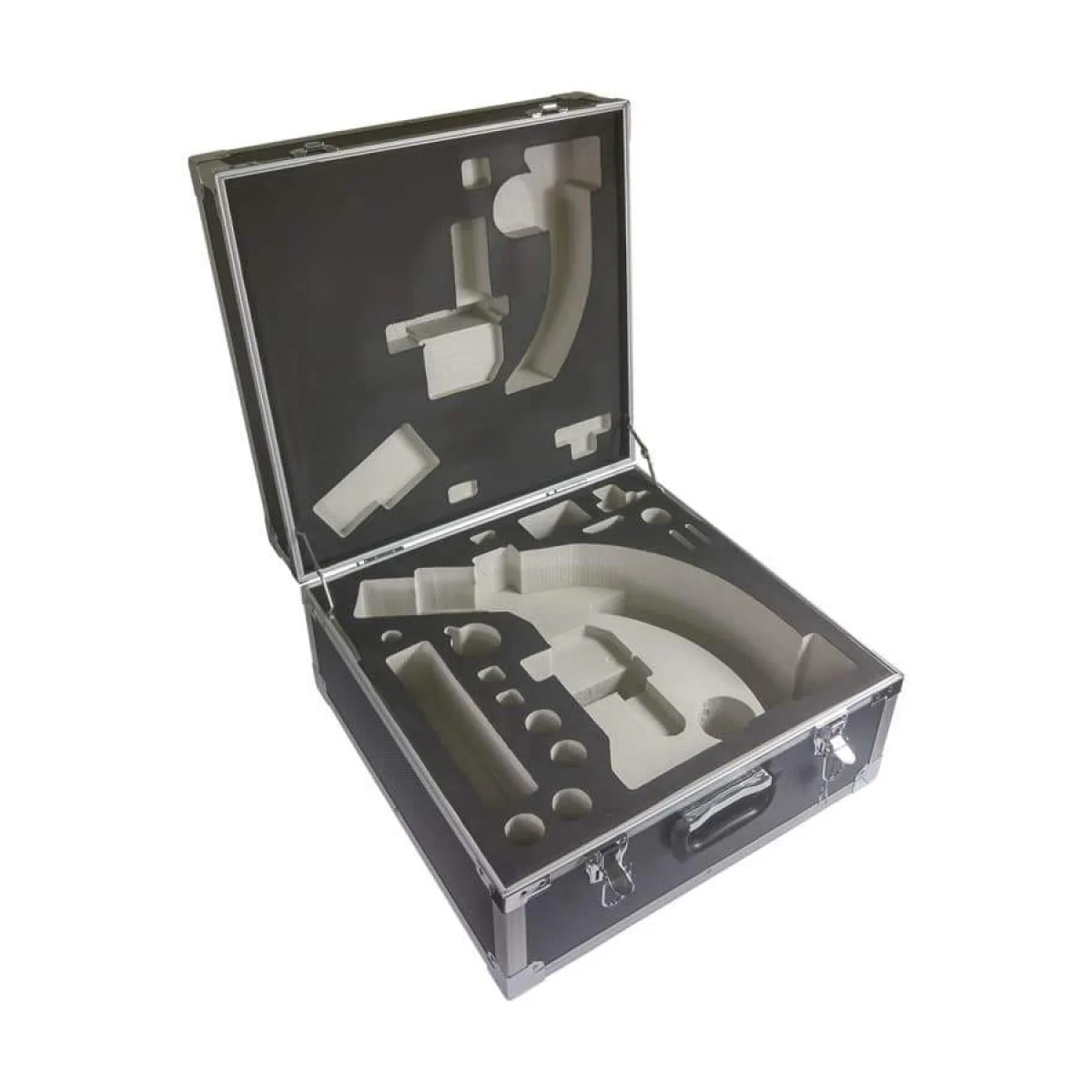

| Optional Case: | Aluminum hard case with lock. Phase slider must be removed from condenser path to fit scope into the case. |
| Warranty: | 5 Year Mechanical 5 Year Electrical |
Brochure
